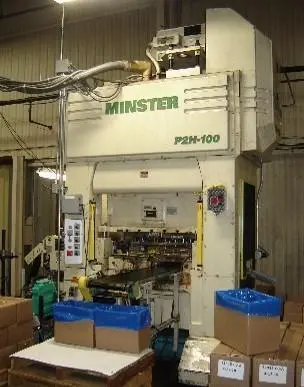

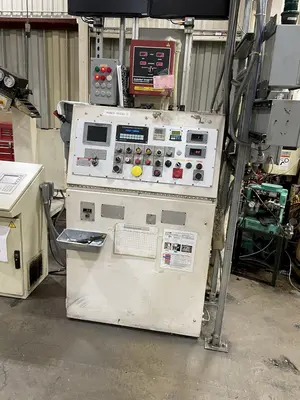

Used 1995 MINSTER P2H-100-39×31-FW | Presses, Straight Side

P2H Precision Straight Side Press
Specifications (INCH)

Press Specifications
Model Number........................................................   P2H-100-39×31-FW
Force × Distance off Bottom..................................   110 ton × 0.063 in
Crankshaft Extension Location...............................   Opposite Drive Side
Drive Arrangement..................................................   Flywheel
Drive Location........................................................   Right Hand Side
Lube Unit Location.................................................   Opposite Feed Side
Approximate Press Weight.....................................   39,600 lb
Shutheight Indicator Readout.................................   Inch
Shop Air Pressure, Minimum..................................   85 psi

Press Slide Specifications
Stroke Length, Speed Range...................................   1.57 in, 90 - 450 spm
Shutheight Adjustment...........................................   3.94 in
Quick Access Slide Range......................................   0.50 - 4.50 in
Area of Slide, R-L × F-B........................................   39.4 × 26.0 in
Slide Face Machining..............................................   Standard

Press Bolster Specifications
Bolster Plate Material..............................................   Cast Iron
Bolster Plate Thickness...........................................   5.94 in
Area of Bolster, R-L × F-B.....................................   39.4 × 31.5 in
Opening in Bolster, R-L × F-B..............................   31.5 x 7.5 in
Bolster Plate Machining..........................................   Standard

Press Frame Specifications
Upright Passline Opening, F-B...............................   22.0 in
Area of Bed, R-L × F-B..........................................   39.4 × 31.5 in
Opening in Bed, R-L × F-B....................................   32.0 × 14.2 in
Bed Deflection at 67% of Die Area........................   0.0013 in/ft
Shutheight, Maximum (SDAU)............................   12.4 in, on Bolster
Approx Clearance, Mount to Bottom of Bed.........   17.0 in
Approx. Distance Mount to Top of Bolster ............  46.7 in.
Approx. Distance Mount to Top of Bed.................   40.7 in
Approx. Floor Area, R-L × F-B..............................   104 × 70.0 in
Approx. Overall Area, R-L × F-B...........................   104 × 70.0 in
Approx. Overall Height, from Mount.....................   155 in
