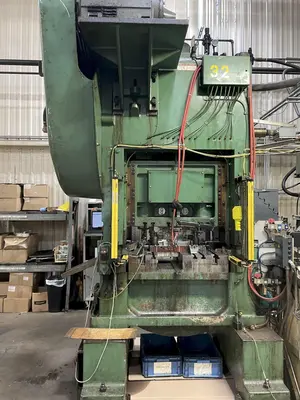

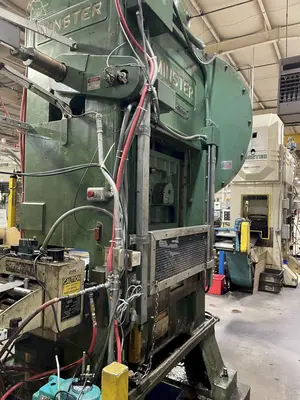

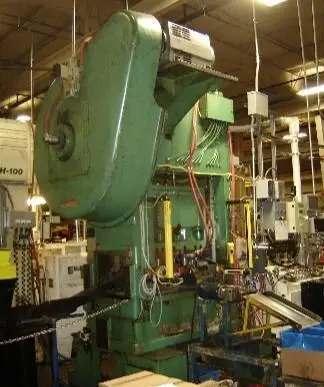

Factory Certified Minster P2-100-36
Minster P2-100-46-07022
Precision Straight Side Press
Specifications (INCH)
Press Specifications
Model Number........................................................ P2-100-36×31-FW
Force × Distance off Bottom.................................. 100 ton
Crankshaft Extension Location............................... Opposite Drive Side
Drive Arrangement.................................................. Flywheel
Drive Location........................................................ Right Hand Side
Lube Unit Location................................................. Drive Side
Approximate Press Mass......................................... 22,600 lb.
Shutheight Indicator Readout................................. Inch
Press Slide Specifications
Stroke Length, Speed Range................................... 2.00 in, 100-400 spm
Adjustment of Shutheight....................................... 4.00 in. Manual
Area of Slide, R-L × F-B........................................ 36.0 × 18.5 in
Slide Face Machining.............................................. Standard
Press Bolster Specifications
Plate Material.......................................................... Steel
Bolster Plate Thickness........................................... 5.00 in
Area of Bolster, R-L × F-B..................................... 36.0 × 31.0 in
Bolster Plate Machining.......................................... Standard
Press Frame Specifications
Upright Passline Opening, F-B............................... 16.0 in
Area of Bed, R-L × F-B.......................................... 36.0 × 31.0 in
Opening in Bed, R-L × F-B.................................... 29.0 × 15.0 in
Shutheight, SDAU on Bolster................................. 10.00 in
Shutheight, SDAU on Bed...................................... 15.00 in
Approx. Clearance, Mount to Bottom of Bed........ 13.00 in
Dist. Floor to Top of Bed.......................................... 36+.0 in
