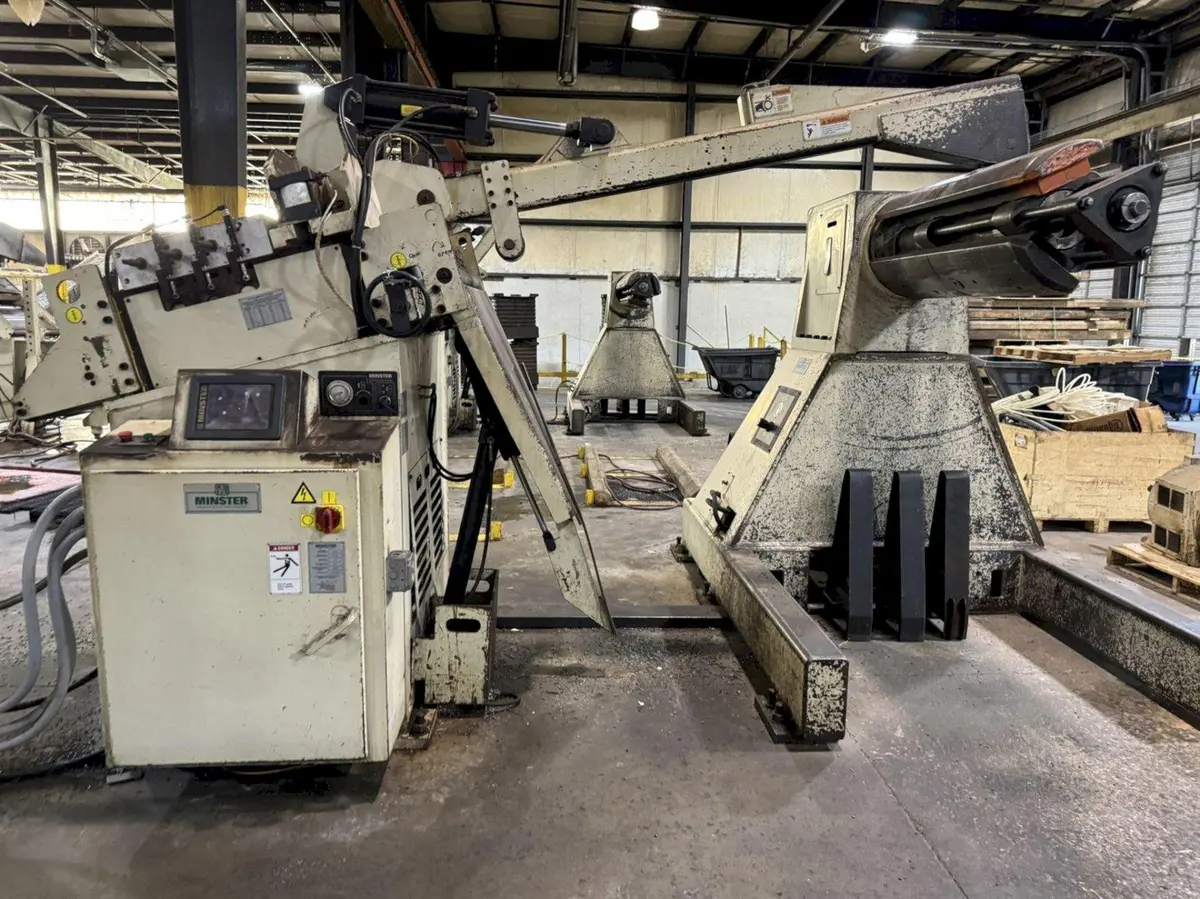

Used 2005 MINSTER MRH20-38S / MSH30-32-7 / MEF6-32S | Coil Feed Lines

Minster Complete Coil Feed Line Specifications:
Coil weight capacity: 24,000 Lb
Coil width capacity: 32"
Stock thickness capacity: .151" x 32" Wide
Stock thickness capacity: .312" x 08" Wide
Expansion range: 20" - 24"
Coil O.D. Capacity: 72"

Minster Complete Coil Feed Line Equipment and Features:

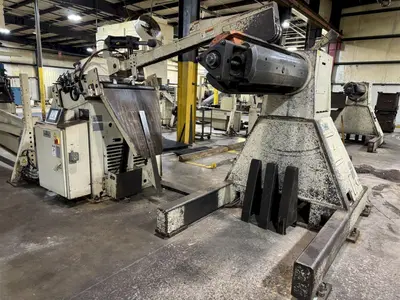

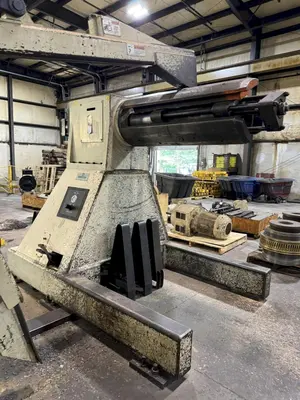

MINSTER Coil Reel Model No.: MRH20-38S
Three leaf mandrel with coil keeper arms
Hydraulic mandrel expansion
Air brake mounted on main spindle
Adjustable tensioning
Threading drive for jog forward and reverse

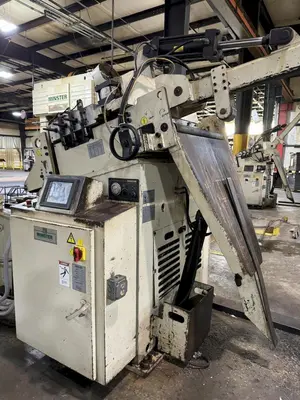

MINSTER Powered Coil Straightener Model No.: MSH-30-32-7 S/N 13-50783
Entry pinch roll assembly x 5" diameter
Air operated upper pinch roll adjustment
Seven powered straightener rolls x 3" diameter
Motorized upper straightening roll adjustments
Roll depth display on main HMI
Adjustable stock width edge guides
Coil hold down arm with motorized end wheel
Stock peeler table with spade extension
Coil end-debender roll
Exit cascade loop support rollers
Automatic lubrication system
Variable speed drive
Operator's control station
Jog forward and reverse w/ remote pendant
End of stock sensor
Auto / Run cycle
Variable speed loop control

MINSTER Threading Table Model No.: MTT-14-32S
Hydraulic actuated
Bomb bay door design

MINSTER Servo Roll Feed Model No.: MEF6-32S
6.37" diameter full width upper and lower servo feed rolls
Matte chrome finish on servo feed rolls
Air operated upper servo feed roll adjustment / pilot
Entry side cascade material support section
Stock width edge guides
Automatic lubrication system from powered straightener
Solenoid controlled pilot release
Air pressure/regulator
Cabinet base mounted w/ adjustable pass line height
AC servo roll feed drive and controls
Job memory, batch counting, on the fly micro adjustment
Free standing sloped front servo roll feed control console
Remote pendant control for jog forward and reverse
Fused disconnect
480 Volt

NOTE:  Line Is Available As Is or Factory Certified Reconditioned w/ All New Controls
