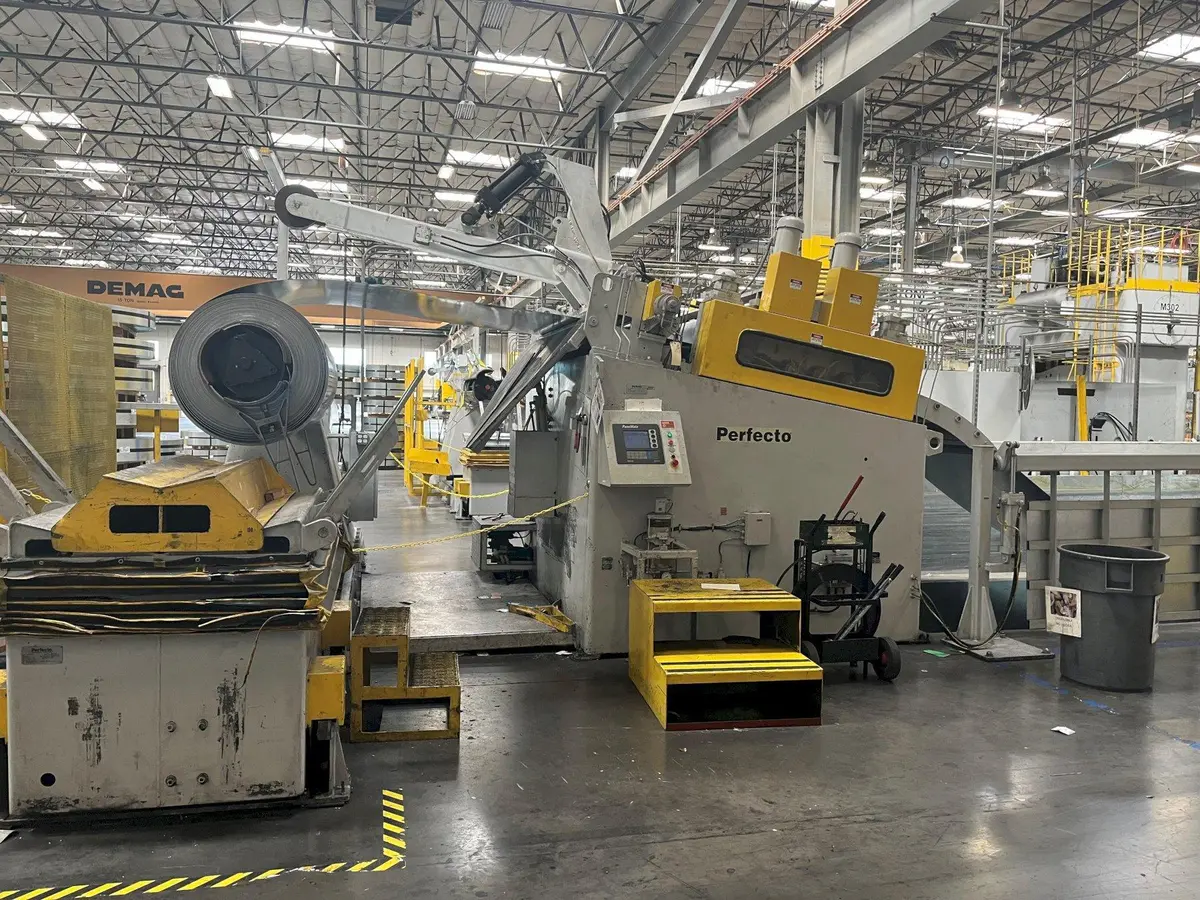

Used 2000 PERFECTO RS30-7272 / 55-72-7 | Coil Feed Lines

Preliminary Specifications (Subject To Inspection):

Stock thickness capacity:
.218" x 72" Wide
.500" x 14" Wide

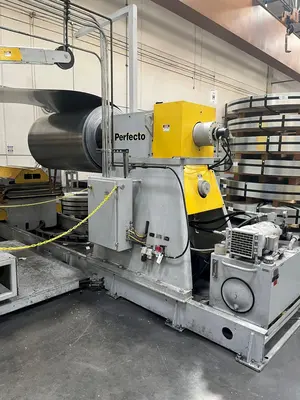

Perfecto Coil Reel Model No. RS30-7272
Three leaf mandrel with hydraulic expansion
Air brake for adjustable tensioning
Jog drive for threading
Traveling coil load car
Powered lift and travel

Perfecto Coil Straightener Model No. 55-72-7
Seven straightening rolls x 5.5" diameter
Motorized straightening roll adjustments
Back up support rollers on upper and lower straightening rolls
Entry and exit pinch rolls
Motorized edge guides
Coil hold down and peeler station
Automatic lubrication system

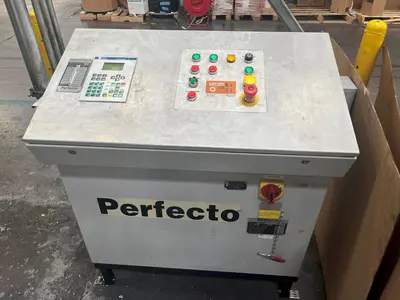

Operator's controls
Loop control

Perfecto Dual Sided Exit Threading Tables

Perfecto Servo Feed Model No 700-72
Piloting upper feed roll
Motorized stock width edge guides
Entry cascade loop support rollers
Anti Back Up Rolls
Cabinet base mounted
Motorized pass line adjustment
AC Servo controls
