Used MINSTER MRH20-38S / MSH30-32-7 | Coil Reels and Straighteners

MINSTER Coil Reel and Powered Straightener Combination Specifications:
Coil weight capacity: 24,000 Lb
Coil width capacity: 32"
Stock thickness capacity: .156" x 32" Wide
Stock thickness capacity: .315" x 05" Wide
Expansion range: 20" - 24"
Coil O.D. capacity: 72"

MINSTER Coil Reel and Powered Straightener Combination Equipment and Features:

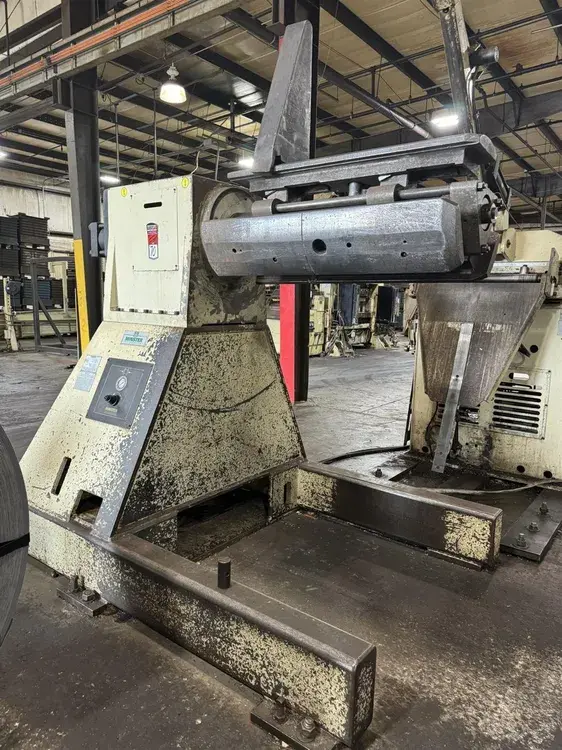

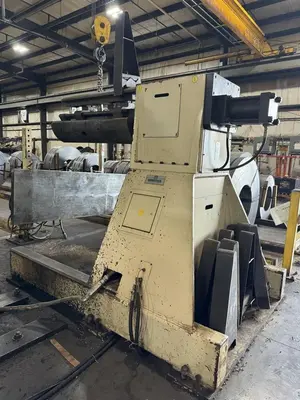

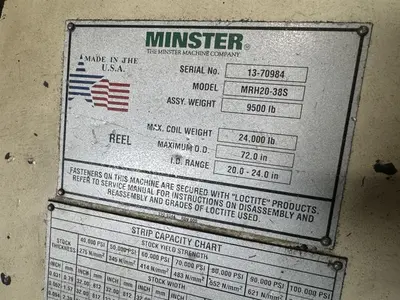

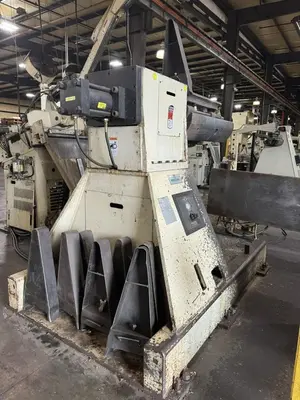

MINSTER Pull Off Coil Reel Model No.: MRH20-38S, Serial No.: 13-70984
Three leaf mandrel with coil keeper arms
Hydraulic mandrel expansion
Air brake mounted on main spindle
Adjustable tensioning
Threading drive for jog forward and reverse

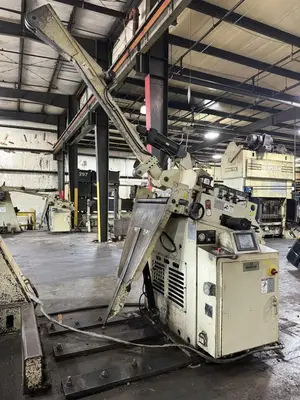

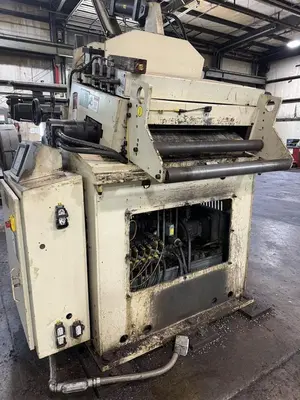

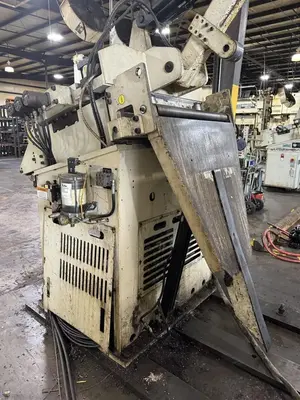

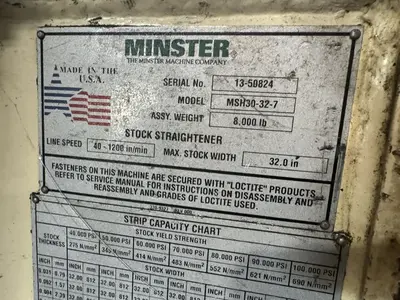

MINSTER Powered Coil Straightener Model No.: MSH-30-32-7, Serial No.: 13-50824
Entry pinch roll assembly x 5" diameter
Air operated upper pinch roll adjustment
Seven powered straightener rolls x 3" diameter
Motorized upper straightening roll adjustments
Roll depth display on main HMI
Adjustable stock width edge guides
Coil hold down arm with motorized end wheel
Stock peeler table with spade extension
Coil end-debender roll
Exit cascade loop support rollers
Automatic lubrication system
Variable speed drive

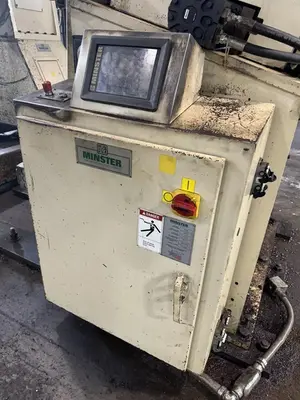

Operator's control station
Jog forward and reverse w/ remote pendant
End of stock sensor
Auto / Run cycle
Variable speed loop control

Optional:

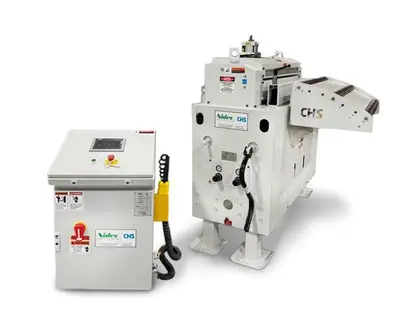

NEW Nidec CHS Servo Roll Feed to complete the feed Line - Consult sales for pricing

Nidec CHS Servo Roll Feed Model No.: MX4536
4.5 inch diameter full width upper and lower servo feed rolls
Matte chrome finish on servo feed rolls
Air operated upper servo feed roll adjustment / pilot (single cylinder, centrally mounted)
Entry side cascade material support section
Slide and clamp stock width edge guides
Centralized lubrication points
Solenoid controlled pilot release
Air pressure/regulator
Cabinet base mounted w/ adjustable pass line height
AC servo roll feed drive and controls (Consult sales for complete details)
Job memory, batch counting, on the fly micro adjustment
Free standing sloped front servo roll feed control console
Remote pendant control for jog forward and reverse
Fused disconnect
480 Volt
