Used FEED LEASE | Coil Reels and Straighteners

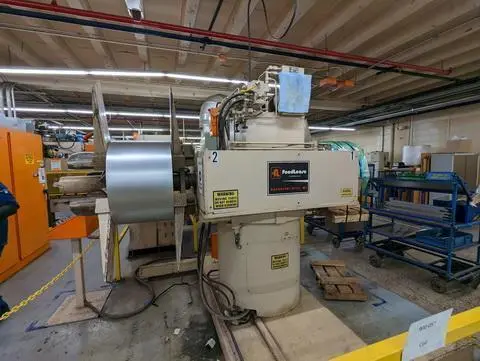

Feed Lease / PA Double End Coil Reel and Powered Straightener Combination Specifications:
Coil weight capacity: 10,000 Lb (Per Side)
Stock width capacity: 20"
Stock thickness capacity: .095" x 20" Wide
Expansion range: T.B.D.
Coil O.D. capacity: 60"

Feed Lease / PA Double End Coil Reel and Powered Straightener Combination Equipment and Features:

Feed Lease Double End Pull Off Coil Reel, Model No.: DAR-10M-24, Serial No.: 4455
Three leaf mandrels per side
Full Set Of Coil Keeper Arms
Hydraulic mandrel expansions
Air brakes (adjustable pull off tensioning)
Hydraulic rotation for mandrel indexing
Jog forward and reverse

PA Powered Coil Straightener, Model No.: SSS197, Serial No.: 11610199/B
Seven straightening rolls
Dial depth indicators for upper straightening roll position
Manual upper straightening roll adjustments
Entry and exit pinch rolls with manual adjustments
Inclined head
Adjustable entry stock width edge guide
Entry and exit cascade loop support rollers
Variable frequency drive and control system
Jog forward and reverse
Auto / run cycle
Loop control
