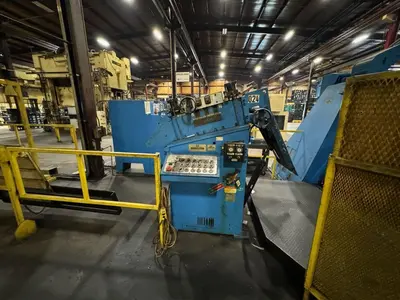

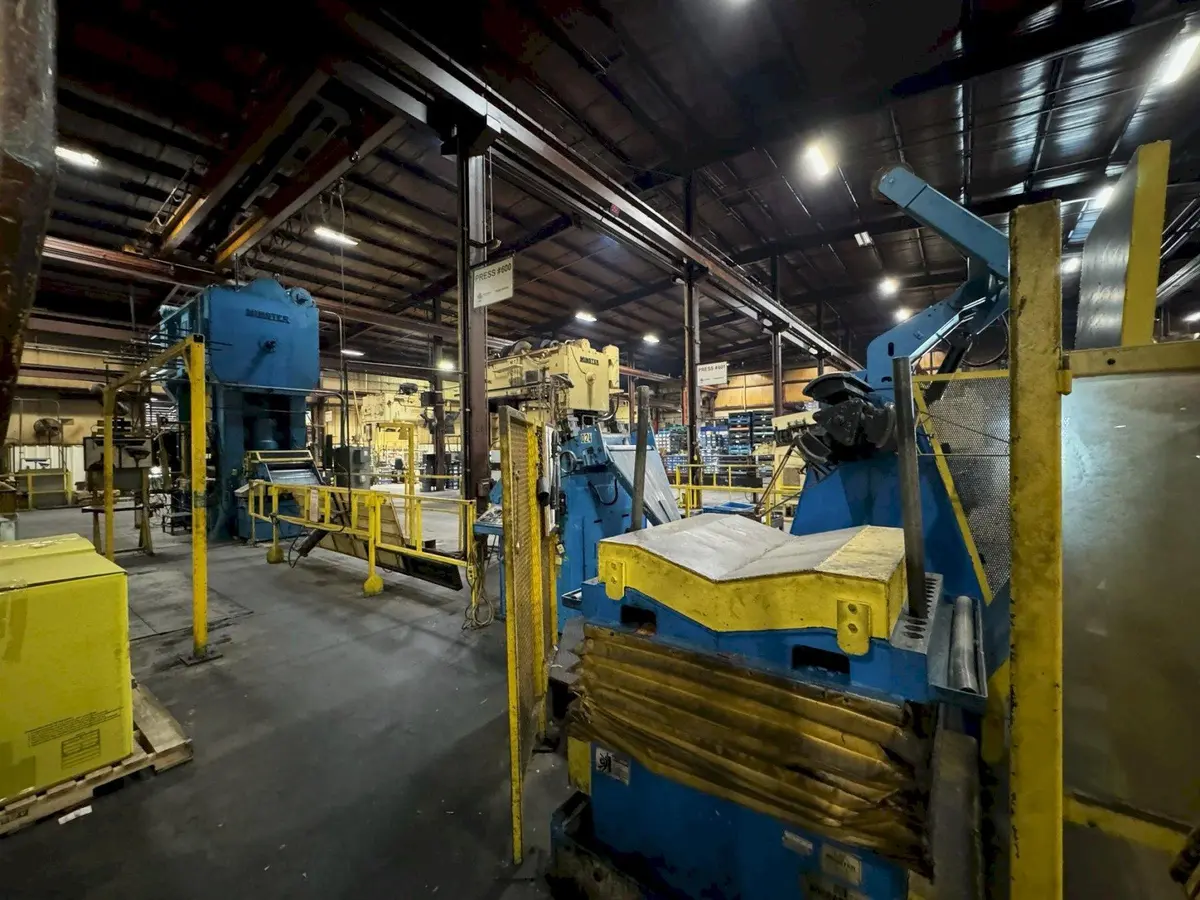

Used MINSTER MR20-26S / MS30-26-7 / MEF5-26 | Coil Feed Lines

Minster Complete Coil Feed Line Specifications:
Coil weight capacity: 20,000 Lb
Coil width capacity: 26"
Stock thickness capacity: .125" x 26" Wide
Stock thickness capacity: .180" x 14" Wide
Expansion range: 20" - 24"
Coil O.D. Capacity: 72

Minster Complete Coil Feed Line Equipment and Features:

MINSTER Coil Reel Model No.: MR20-26S
Three leaf mandrel with coil keeper arms
Hydraulic mandrel expansion
Coil hold down arm
Air brake mounted on main spindle
Adjustable tensioning
Threading drive for jog forward and reverse
Traveling coil load car
Powered lift and travel

MINSTER Powered Coil Straightener Model No.: MS-30-26-7
Entry pinch roll assembly x 5" diameter
Air operated upper pinch roll adjustment
Seven powered straightener rolls x 3" diameter
Motorized upper straightening roll adjustments
Roll depth display on main HMI
Adjustable stock width edge guides
Stock peeler table with spade extension
Exit cascade loop support rollers
Automatic lubrication system
Variable speed drive
Operator's control station
Jog forward and reverse w/ remote pendant
End of stock sensor
Auto / Run cycle
Variable speed loop control

MINSTER Servo Roll Feed Model No.: MEF5-26
5" diameter full width upper and lower servo feed rolls
Matte chrome finish on servo feed rolls
Air operated upper servo feed roll adjustment / pilot
Entry side cascade material support section
Stock width edge guides
Automatic lubrication system from powered straightener
Solenoid controlled pilot release
Air pressure/regulator
Cabinet base mounted w/ adjustable pass line height
