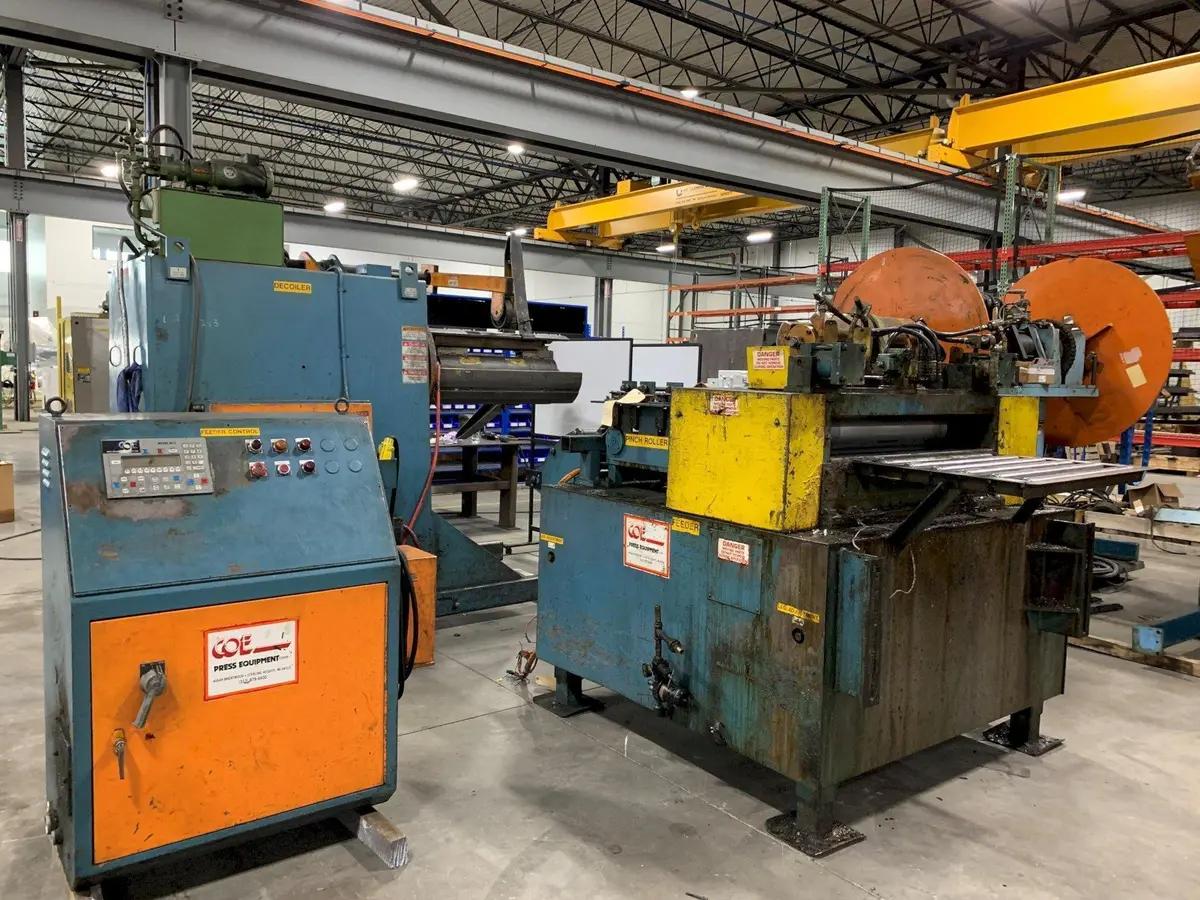

Coe Press Coil Feed Line 15,000 Lbs. x 36" Wide

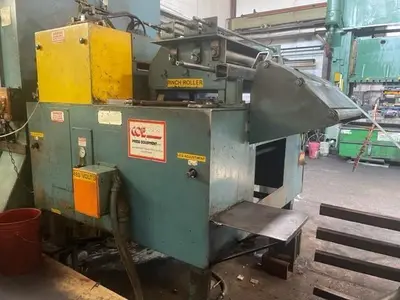

Specifications:Stock thickness capacity: .106" x 36" WideStock thickness capacity: .187" x 18" Wide Coe Press Servo Roll Feed Straightener Combination, Model No.: CPRF-636, Serial No.: 6992-16 Inch diameter full width upper and lower servo feed rollsMatte chrome finish on servo feed rollsAir operated upper servo feed roll adjustment / pilot Centralized lubrication pointsCabinet base mounted with heavy duty pass line adjustment Solenoid controlled pilot releaseAir pressure / regulators Coe Press pull thru straightenerFive Straightening rolls x 3.0" diameter Individual upper straightening roll adjustments manual pinch roll assembly for stock threading (hand crank) Cascade loop support rollersStock width edge guides AC servo roll feed drive and controls Job memory storage

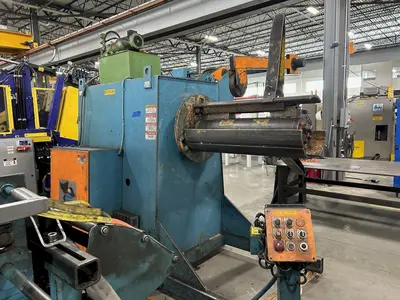

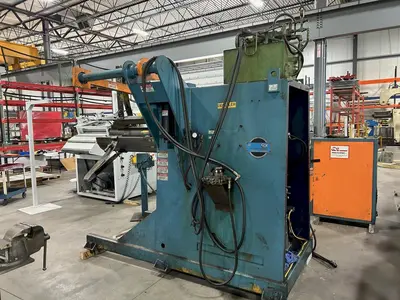

Coe Press Motorized Coil Reel, Model No.: CPR-15036, Serial No.: 27880-1
Three leaf mandrel coil reel
Hydraulic mandrel expansion
Stand alone hydraulic unit
Air operated coil hold down arm
Air brake
Motorized payout
Variable speed drive
Jog forward and reverse
Auto/Run cycle
Loop control
