Used CWP 3RD-18 / SE12B / SMXIII-12 | Coil Feed Lines

CWP Double End Complete Coil Feed Line Specifications:Coil weight capacity: 4,000 Lbs. (Per Side)Coil width capacity: 12"Stock thickness capacity: .093" x 12" Wide

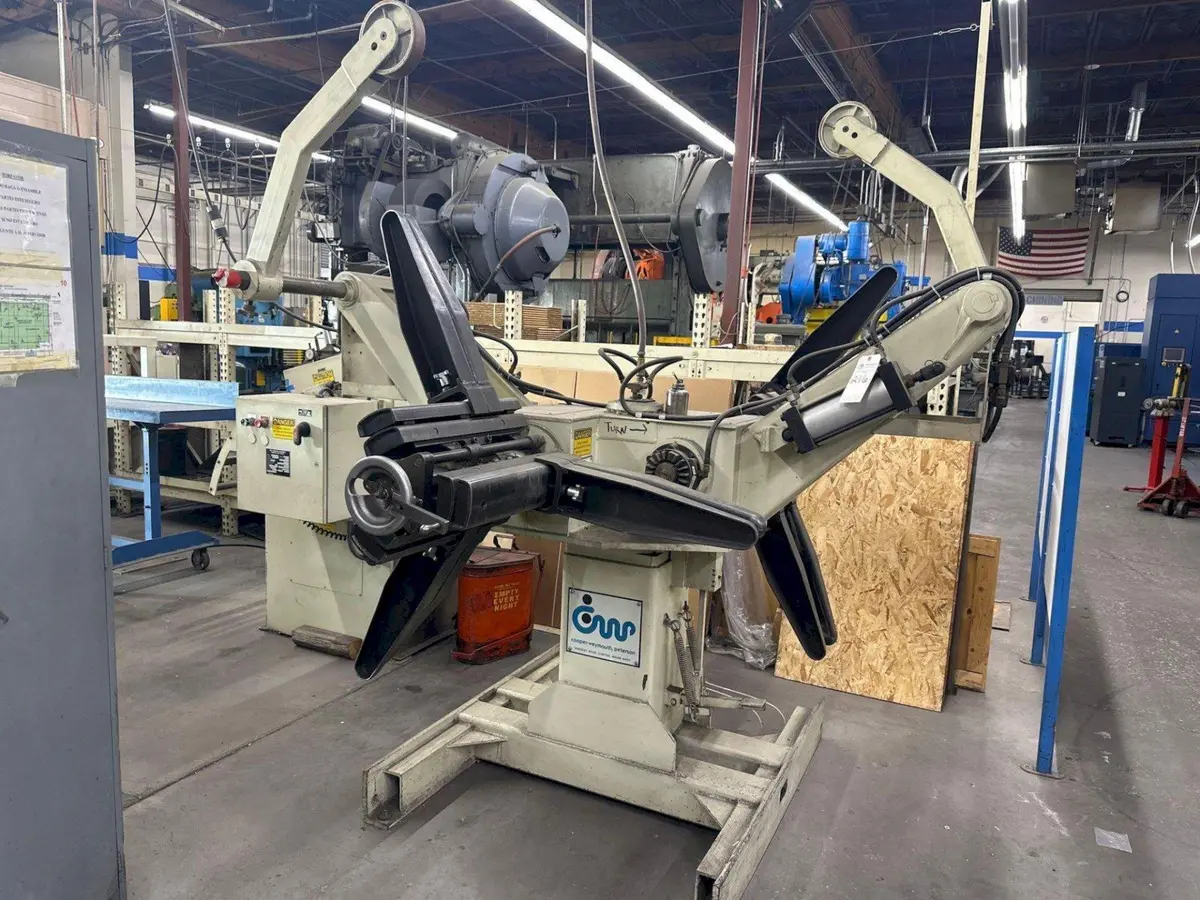

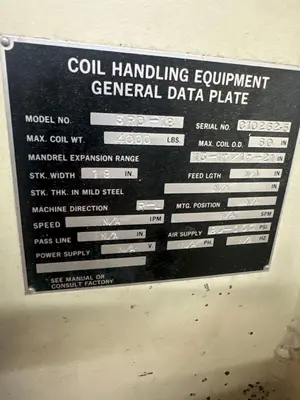

Expansion range: 13" - 17" / 17" - 21" with risersCoil O.D. capacity: 60"CWP Double End Complete Coil Feed Line Equipment and Features:CWP Double End Coil Reel Uncoiler Model No.: 3RD-12, Serial No.: C10262-5Three leaf mandrel coil reel per sideManual coil reel mandrel expansion Adjustable coil reel keeper arms
Dual air operated coil hold down arms (Hand valve actuated)
Air drag brakes mounted on main spindles
Adjustable drag brake pressure - pull off tension
Foot pedal release for manual turret rotation

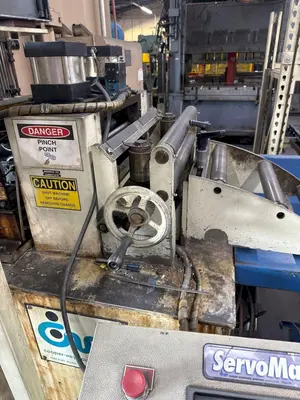

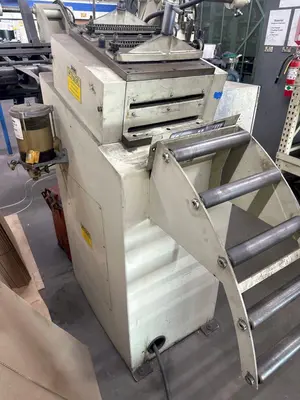

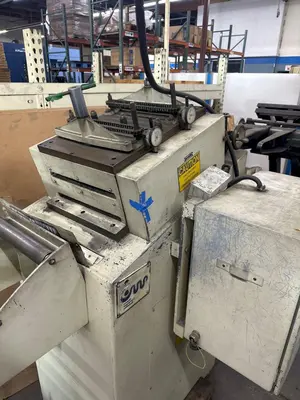

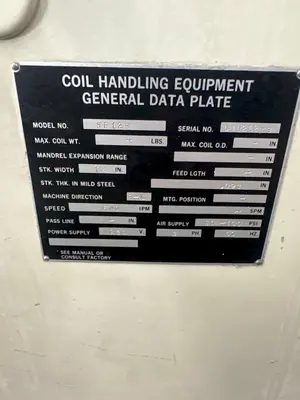

CWP Powered Coil Straightener Model No.: SE12B, Serial No.: C10262-3Entry and exit powered coil straightener pinch rolls Manual entry and exit upper powered coil straightener pinch roll adjustmentSeven coil straightening rolls x 2.00" diameterManual bank type upper coil straightening roll adjustments
Dial depth indicators for upper straightener roll depthEntry stock width edge guides
Automatic lubrication system

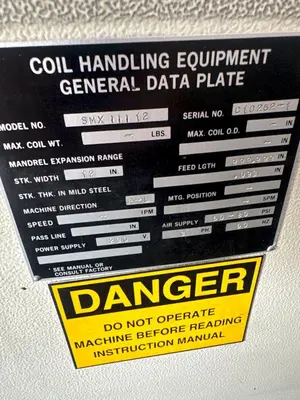

Hand held pendant control for jog forward and reverseVariable speed powered coil straightener drive system Exit cascade loop support rollersLoop controlCWP Servo Roll Feed Press Feed Model No.: SMXIII-12, Serial No.: C10262-1Full Width upper and lower servo feed rollsAir operated upper servo feed roll lift/pilot Adjustable stock width edge guides Entry cascade loop support rollers Free standing base with adjustable pass line height AC servo roll feed drive and controls Job memory micro adjust batch count etc.Pilot pin modeFree standing sloped front servo roll feed control consoleRemote pendant control for jog forward and reverseFused disconnect
