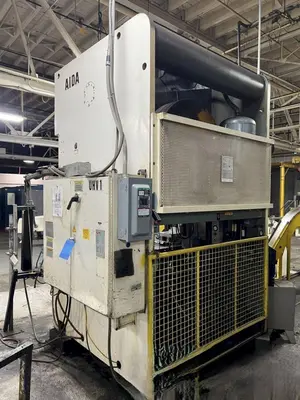

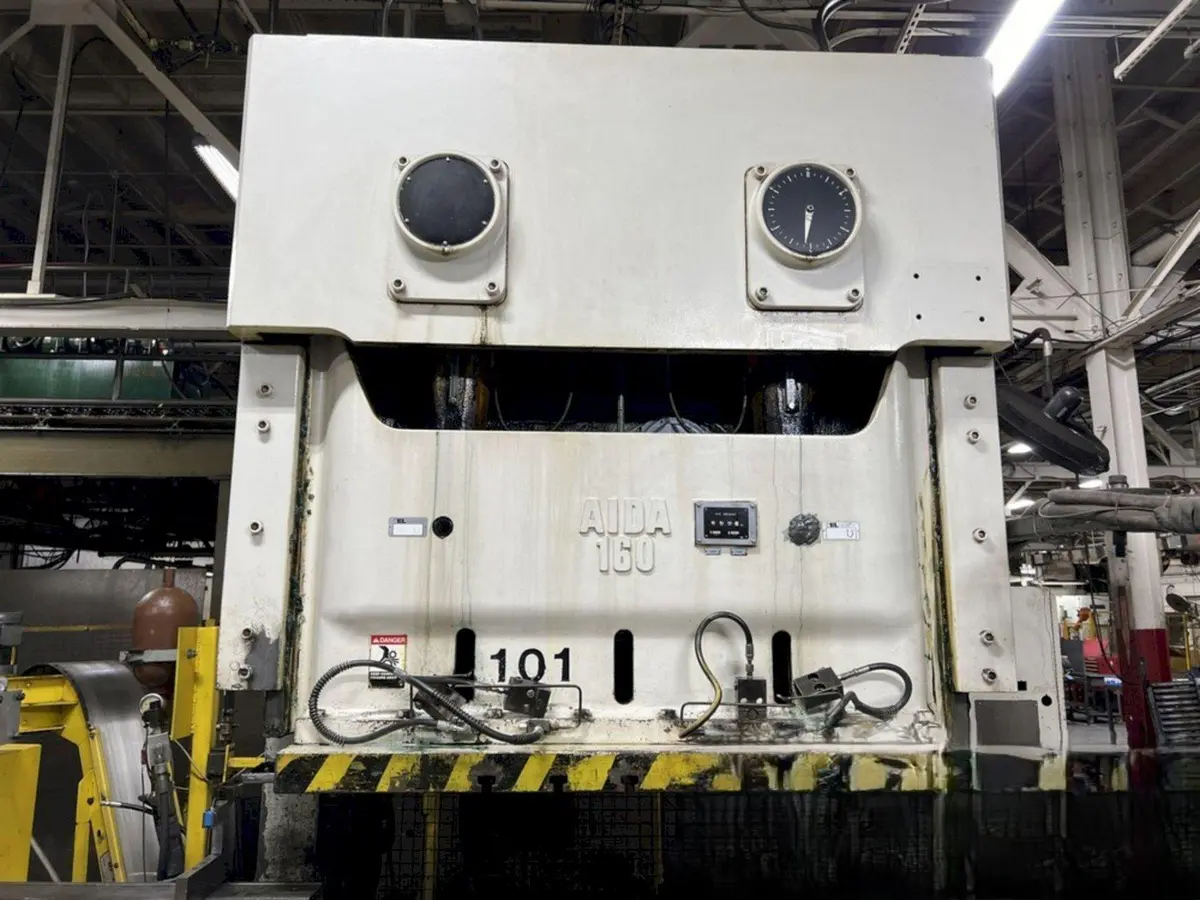

Used AIDA NC2-160 | Presses, Gap Frame, Double Crank

Aida Press Model NC2-160 Standard Specifications:
Double Crank Gap Mechanical Press
Serial No.: 10516-1889
Tonnage: 160 Ton Metric
Tonnage: 176 Ton US
Stroke: 5.12"
Shut height on bed: 18.4"
Die height on bolster: 12.4"
Motorized adjustment: 3.9"
Bed Area: 75" LR - 27.6 FB
Ram Area: 59" LR - 22.8" FB
SPM: 40 - 85 VSPM

Aida Press Model NC2-160 Equipment and Features:
Crank motion 2 point press
Air counterbalances
Recirculating lube system
Aida wet clutch and brake
6-Ponit full length bronze
Hydraulic overloads
T-Slotted ram and bolster plate
Black Max Link Lite light curtains
Aida press controls with panel view touch screen
6.5" Bolster plate
Vibro dynamic floor pads
20 HP Main Motor
Flush floor mount
