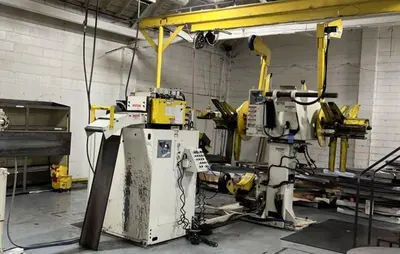

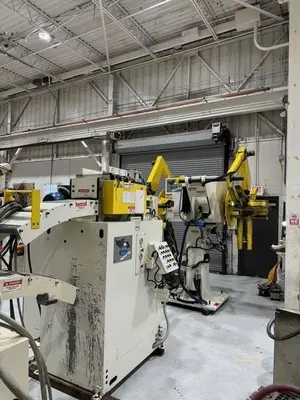

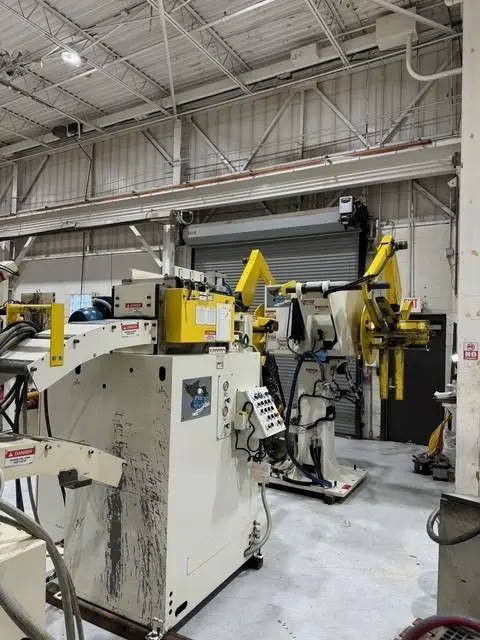

Coe Press Coil Feed Line - Double End Reel 6,000 Lbs. x 12" Wide x .250"
Coe Press Double End Coil Reel and Powered Straightener Combination Specifications:
Coil weight capacity: 6,000 Lb (Per Side)
Coil width capacity: 12 "
Stock thickness capacity: .250" x 12" Wide
Expansion range: 16" - 21"
Coil O.D. capacity: 72"
Capacity: .187" x 08" Wide (85,000 Material Yield)
Max Capacity: .250" x 03" Wide (85,000 Material Yield)
Coe Press Double End Coil Reel and Powered Straightener Combination Equipment and Features:

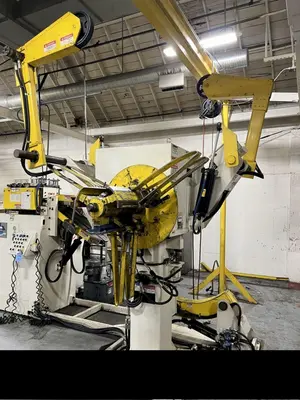

Coe Press Double End Coil Reel Model No.: CPR-DE-PO-6018, Serial No.: 63004-4
Three lead mandrel per side
Hydraulic mandrel expansion
Adjustable coil keeper arms
Air drag brake with adjustable tensioning (Fail Safe)
Hydraulic thread drive for Jog forward and reverse
Hydraulic turret indexing for double end reel
Dual coil hold down arms with motorized end wheels
Coil hold up arm for run side mandrel

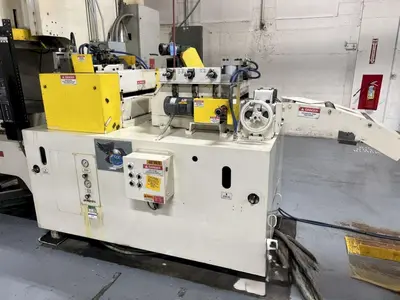

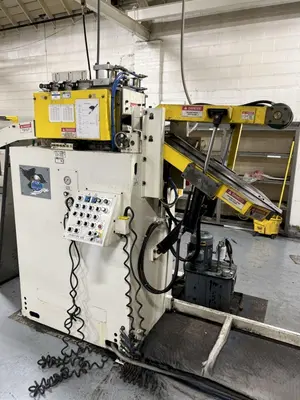

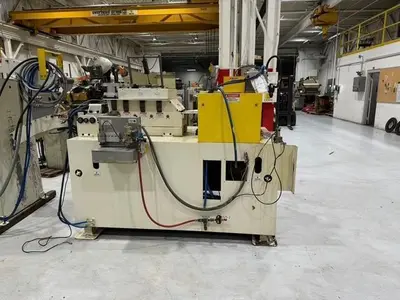

Coe Press Powered Coil Straightener Model No.: CPPS-350-12, Serial No.: 63004-3
Entry power driven pinch roll assembly x 5" diameter
Air operated upper pinch roll adjustment
Seven straightening rolls x 3.5" diameter
Individual upper straightener roll adjustments
Digital roll position indicators
Alligator style peeler, dekinker station with motorized roll
Hand crank self centering edge guides
Four roll catenary loop support section
Hand held pendant for jog forward and reverse
AC Variable frequency drive (10 HP)
Operator's control station
Auto / run cycle w/ laser loop control
Coe Press Exit Threading Table Model No.: CPTT-1220, Serial No.: 63004-2
12" Wide x 20' Long
Air operated actuation
Bomb-bay door design

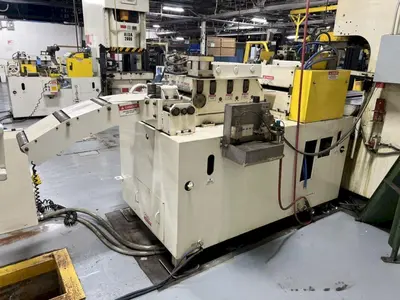

Coe Press Servo Feed - Straightener Combination Model No. CPRF-518
2 Roll x 5" Diameter
409 FPM Roll Speed
12" Feed Length @ 44 SPM @ 180 Degrees
24" Feed Length @ 32 SPM @ 180 Degrees
Heavy Duty Cabinet Base +/- 6" Adjustment
Emergency Stop
Remote Pendant
Single Cycle Pushbutton for Set up at Jog Speed

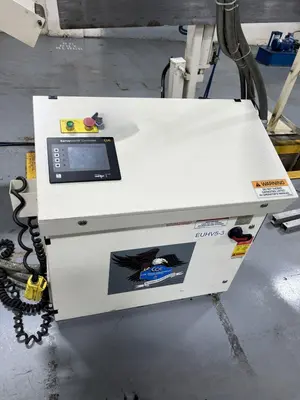

ServoMaster Touchscreen Controller
4 Roll Catenary Support Section with Full Side Plates and Funnels
Full Width Upper and Lower Feed Rolls
PHS7-12 Pull Thru Straightener
(7) 3” diameter Straightening Rolls
Powered Pinch Roll with Air Raise and Lower
Pinch Roll Raise & Lower Solenoid Operated
