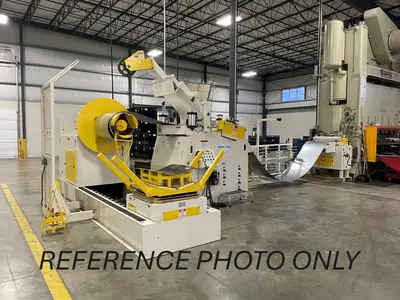

Dallas Industries Coil Feed Line 30,000 Lbs. x 48" Wide
Preliminary Specifications:
Stock thickness at 48" Wide: .125"
Stock thickness at 24" Wide: .188"

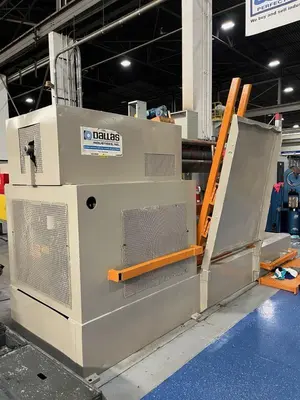

Dallas Servo Roll Feed Model DRF-648
Six inch diameter upper and lower feed rolls
Piloting upper roll lift
Adjustable stock width edge guides
Heavy duty cabinet base with adjustable pass line
AC Servo drive and controls (updated)

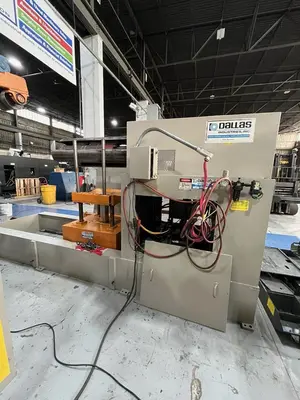

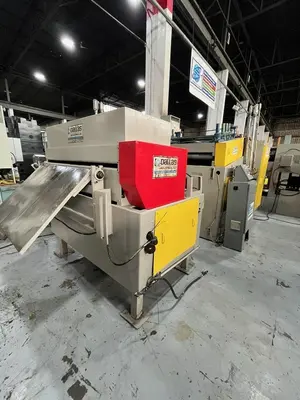

Dallas Powered Straightener Model No. DPS-3.5-48-7
Seven straightening rolls x 3.5" diameter
Individual upper roll adjustments
Entry and exit pinch rolls (air operated entry adjustment)
Adjustable stock width edge guides
Coil hold down arm with motorized end wheel
Stock peeler table with integrated de-bender
Variable speed drive
Operator's station and controls
Jog forward and reverse
Auto / Run cycle
Loop control

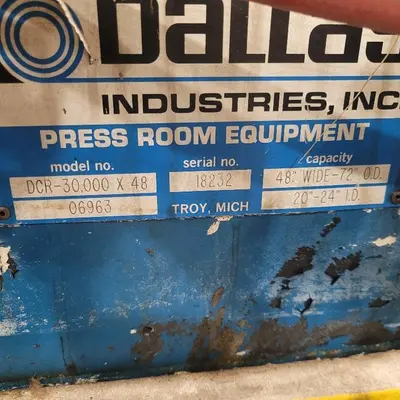

Dallas Coil Reel Uncoiler Model No. DCR-30,000-48
Three leaf mandrel with hydraulic expansion
Air brake mounted on main spindle
Threading drive for jog f/r
Traveling coil load car
Powered lift and travel
