New Presses, High Speed Production

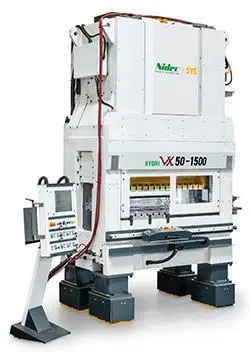

Model: VX 50
Serial Number (S/N 243009)
Year:
Specifications:
SPM: Varies
Tonnage: 50 Tons
Stroke: Varies
Shut Height: 290 mm
Bed W 650 millimeters

Bed L 1500 (1510) millimeters
With new Press-Control-System PCS100-P-S

Technical specification:
Tonnage: 500 KN
Drive: fly wheel with dynamic balancer
Feeding Direction: left to right (right to left also possible)
Color: Kyori white RAL 7035
Position of Main Drive: right
Ram Adjustment Range: 55 mm
Shut Height Max.: 290 mm
Max. Upper Die Weight: 400 kg - higher upper die weight is possible with reduced performance
Safety Doors: front and back
Tool Load Area Light: 2 LED-lights
Bolster Area (LxW): 1500 (1510) x 650 mm
Bolster Design: T-slot
Bolster Material: steel
Bolster Thickness: 220 mm
Base Plate Opening (LxW): 1200 x 160 mm
Ram Area (LxW): 1500 x 420 mm
Ram Design: T-slot
Dimensions: 2500x 1850 mm
Total Height: 3780 mm
Weight: (approx.) 14.500 kg
Strip Inlet Height: has to be defined
Strip Inlet Width: max. 280 mm
Cooling System: liquid cooling system, for electrical cabinet; AC servo main drive and machine oil
Feeding System Tandem-Servo-Feed TPV30orPV100
