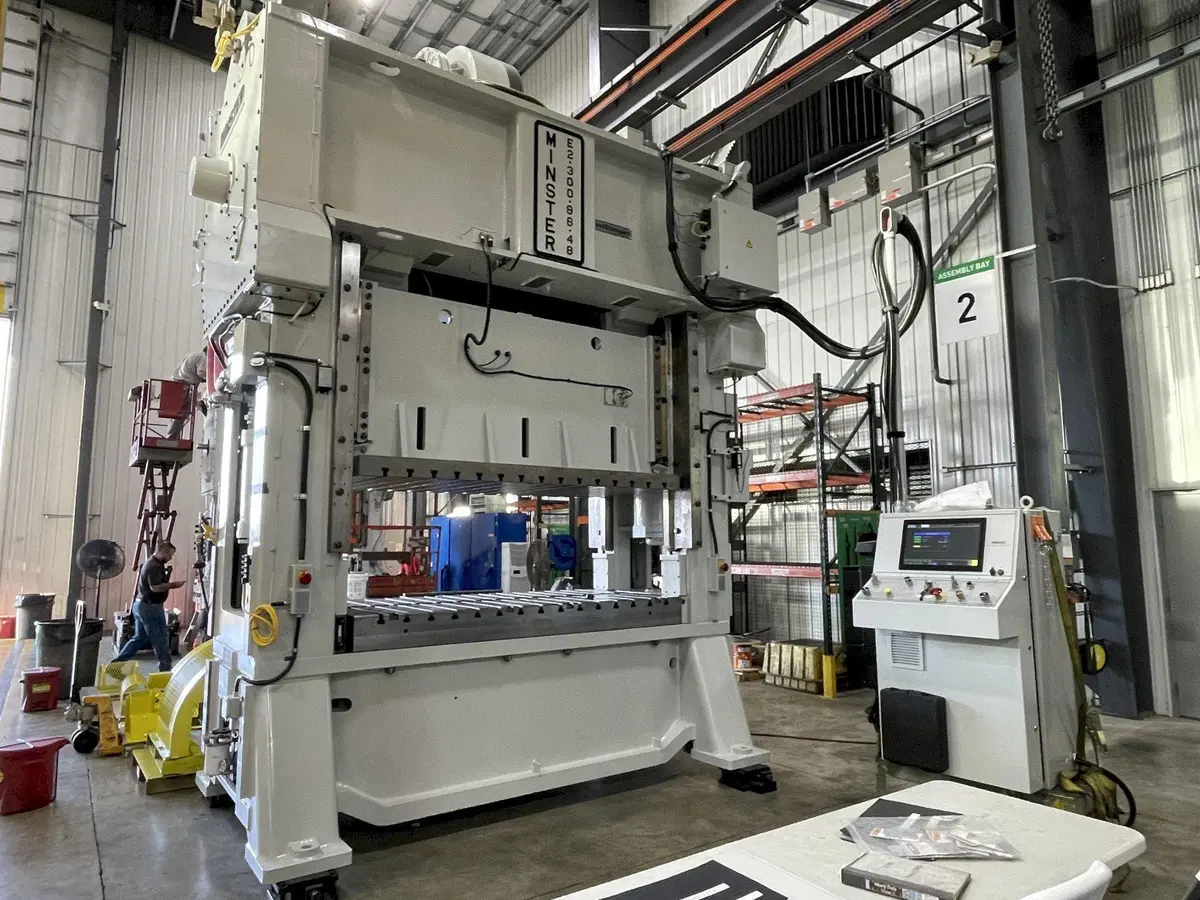

Minster E2-300-96 Straight Side Press, Remanufactured

Description

PRESS SPECIFICATIONS:
• 300 US Tons Capacity (2669 kN)
• 12.00 in. Stroke (305 mm)
• 6.00 in. Slide Adjustment (152 mm)
• 30.00 in. Shutheight, SDAU, on Bed (762 mm)
• 96.00 x 48.00 in. Slide Area (2438 x 1219 mm)
• 96.00 x 48.00 in. Bed Area (2438 x 1219 mm)
• 98.00 in. Between Gibs (2489 mm)
• 27.00 in. Upright Opening (686 mm)
• 36.00 in. Floor to Top of Bed (914 mm)
• 0-80 SPM
• 50 hp – RPM Drive Motor
• 112,500 lbs. Approx. Weight, Press Only (51.710 kg)

EQUIPPED WITH:
• Single Geared
• Minster Combination Flywheel Brake, Electrically
Interlocked
• Four Piece Tie Rod Construction Frame
o Welded Crown, Bed, Slide
o High Tensile Cast Iron Uprights
• Pneumatic Counterbalance
• Minster “Monitorflow” Recirculating Lube System
• Long Barrel Motorized Shutheight Adjustment
• New Minster PMC Press Control
• Vibro/Dynamics Isolation Mounts
• Automatic Counterbalance Adjustment
• Automatic Shutheight Adjustment
• (4) Channel Load Monitor
• 16-Point (NPN) Die Protection Package
