Equipment
Available Presses
Straight Side Presses

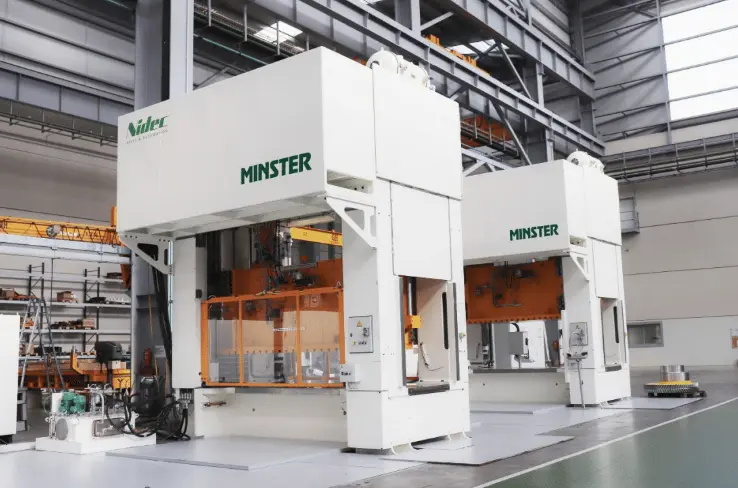

Minster GS2 - 400 - 305 x 140 Servo Press (2 available - Immediate Delivery)

Minster GS2 - 400 - 305 x 140 Servo Press (2 available - Immediate Delivery)

Have one to sell?
1 226 344 9956
carlos@PressTrader.com
ConditionUsed
2 available
Have one to sell?

Overview

Type:
Straight Side Presses
Manufacturer:
NIDEC MINSTER
Model:
GS2-400-305x140
Year:
2020
Stock #:
NMSK24-1031-1
Status:
For Sale
Serial #:
400.58.751 5 & 7516

Description

Capacity: 4,000 kN
Stroke: 13.8" / 350 mm
Slide Adj.: 13.8" / 350 mm
Shut Height: 37" / 940 mm
Slide/Bolster Area: 120 " x 55" / 3050 x 1400 mm
Window: 55" / 1400 mm
0 - 90 SPM (Pendulum)
Siemens Servo Motor
Hydraulic Overload
Tonnage Monitor
Auto Shutheight and Counterbalance
F&R Auto-Powerdoors
In excellent condition

Type of PressServoServo
Tonnage400 T362.874 t
Bolster (LR)120"3,048 mm
Bolster (FB)55"1,397 mm
Stroke13.8"350.52 mm
Shut Height37"939.8 mm
Min SPM0 strokes/min.0 strokes/min.
Max SPM90 strokes/min.90 spm
Vari Speed (Yes/No)YesYes
Ram (FB)55"1,397 mm
Ram (LR)120"3,048 mm
Slide Adjustment13.8"350.52 mm
Weight181,000 lbs181,000 lbs

Capacity: 4,000 kN
Stroke: 13.8" / 350 mm
Slide Adj.: 13.8" / 350 mm
Shut Height: 37" / 940 mm
Slide/Bolster Area: 120 " x 55" / 3050 x 1400 mm
Window: 55" / 1400 mm
0 - 90 SPM (Pendulum)
Siemens Servo Motor
Hydraulic Overload
Tonnage Monitor
Auto Shutheight and Counterbalance
F&R Auto-Powerdoors
In excellent condition
