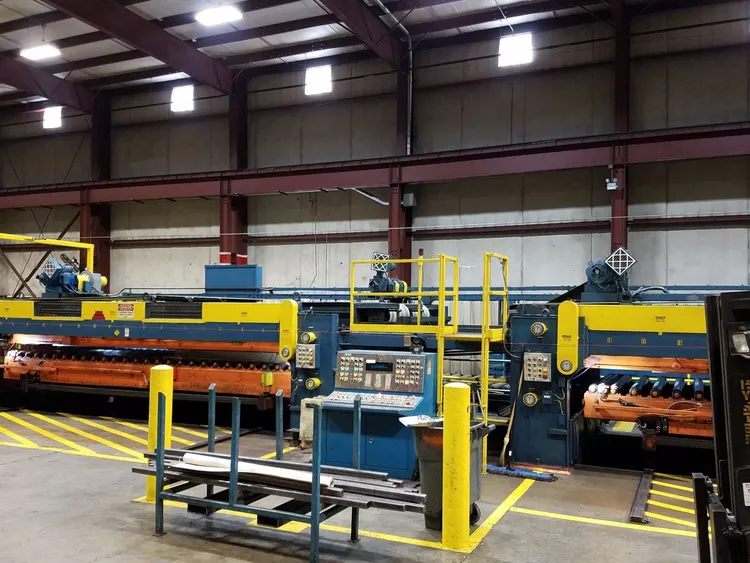

AUTOMATIC FEED 76" TRAPEZOID CUT TO LENGTH LINE - UPDATED IN 2020

Description

MATERIAL - 0.020" - 0.100"
YIELD STRENGTH - 25,000 PSI - 40,000 PSI
WIDTH RANGE - 24" - 76"
TRIM WIDTH - 74"
ID RANGE - 19" - 25"
OD RANGE - 36" - 84"
LINE SPEED - 300 FPM

SHEAR SPM - 18 - 70
SHEAR ANGLE CUTS - 30 DEGREES MAXIMUM +/-
SHEAR STROKE - 6"
SHEAR SHUT HEIGHT - 30"

STACKER WIDTH RANGE - 24" - 74"
STACKER LENGTH RANGE - 24" - 168"
MAXIMUM STACK WEIGHT - 20,000#
MAXIMUM LIFT & TRANSPORT WEIGHT - 40,000#
MAXIMUM STACK HEIGHT - 24"

(4) STATION TRAVELING COIL STORAGE RACK
V-TYPE TRAVELING COIL CAR W/ HYDRAULIC LIFT
ANTI-TIP GUIDES
DUAL STUB MANDREL EXPANDING UNCOILER

HOLD-DOWN ROLL & PEELER ASSEMBLY
PINCH ROLL AND ENTRY CROP SHEAR ASSEMBLY W/ SCRAP CONVEYOR
EDGE TRIMMING UNIT

BUTECH MDL. SC-250 SCRAP CHOPPERS
(4) AC MOTORS - 30 HP, 1750 RPM & (3) SERIES 2400 MODULAR FLUX VECTOR AC
INVERTERS
(FOR THE PINCH ROLL, SCRAP CHOPPER, ENTRY PINCH ROLL, AND EXIT PINCH ROLL)

WASHING & RINSE UNIT WITH HIGH-PRESSURE PUMP & FILTER SYSTEM
19 ROLL 5HI PRECISION LEVELER
1.9375" ROLL DIAMETER
76" WIDTH
AC MOTOR - 250 HP, 1150 RPM & SERIES 2400 MODULAR FLUX VECTOR AC INVERTER

LOOPING PIT #1 & INSPECTION TABLE
ECT STRIP OILER
PINCH ROLL ASSEMBLY

LOOPING PIT #2
THREADING TABLE
DIGITAL CONTROLLED ROLL FEED
AC MOTOR - 100 HP, 1000 RPM & SERIES 2400 MODULAR FLUX VECTOR AC INVERTER

UPCUT SHEAR
AC MOTOR - 30 HP, 0-1750 RPM

OSCILLATING/TRAPEZOID SHEAR ASSEMBLY
DIES STYLE - CASSETTE TYPE - MULTIPLE DIES AVAILABLE
AC MOTOR - 75 HP, 1150 RPM & SERIES 2400 MODULAR FLUX VECTOR AC INVERTER

BELT RUNOUT CONVEYOR
AC MOTOR - 30 HP, 1750 RPM & SERIES 2400 MODULAR FLUX VECTOR AC INVERTER FOR

EACH STACKER
MAGNETIC BELT CONVEYOR & TWO STATION MAGNETIC STACKER
AC MOTOR - 30 HP, 1750 RPM & SERIES 2400 MODULAR FLUX VECTOR AC INVERTER FOR

EACH STACKER
A NEW MAGNET SYSTEM INSTALLED IN 2020 WITH FUTURE AREAS FOR VACUUM CHAMBERS

REJECT PILER
LEFT AND RIGHT DISCHARGE TRANSFER CONVEYOR
AC MOTOR - 15 HP, 1750 RPM & SERIES 2400 MODULAR FLUX VECTOR AC INVERTER

100' + RUNOUT OUT CONVEYOR ON RIGHTHAND (R-L DIRECTION) OF STACKER WITH SCALES
EXTENSIVE ELECTRICAL AND CONTROLS UPGRADE IN 2020 INCLUDING:
NEW ALLEN BRADLEY PLC UPGRADE FOR LINE AND STACKER WITH CONTROLOGIX WITH

GUARDLOGIX PROCESSORS & DYNICS TOUCHSCREENS
NEW COIL LINE & STACKER ADJUSTMENT FEEDBACK DEVICES
AUTOMATIC FEED COMPANY'S AUTOMATION INTEGRATION MANAGER (AIM) VISUAL BASIC

OPERATOR INTERFACE
NEW SAFETY DEVICES ON THE COIL LINE AND STACKER
108 NEW MAGNET ASSEMBLIES FOR THE STACKER AND ALLOW ROOM FOR VACUUM CHAMBERS

IN THE FUTURE
UNICO AC SERVER DRIVES INTEGRATED THROUGHOUT THE LINE
UNICO SERIES 4000 SERVO DRIVE CONTROLLERS THROUGHOUT THE LINE
PROVIDE AUTO THREAD CAPABILITY STARTING AFTER THE CROP SHEAR
