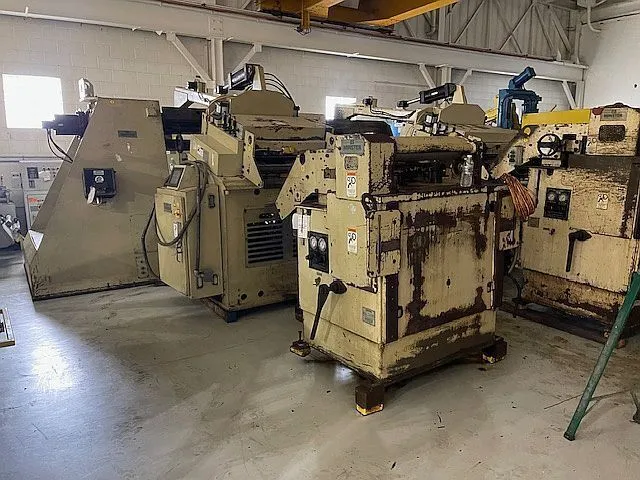

Minster 26” wide x 15,000# wide x 0.350” thick Complete Servo Feedline

Description

Coil Weight Capacity..................................... 10,000 #
Model………………………………………. MSH30-26-7
Model Number……………………………... MEF5-26/MR15-26S
Year of Manufacture……………………….. 1997
Coil Width Capacity ...................................... 26”
Stock Thickness Capacity……………………26” wide x .156” thick material
Max. Capacity……………………………….. 5” wide x 0.350” thick
Min. stock Thickness………………………… 0.030” x 26” wide
Coil I.D. Range………………………………. 20-24”
Coil O.D......................................................... 60”
Power Supply………………………………. 460/3/60
Feed Direction……………………………… Left to Right
Equipped With:
MINSTER Coil Reel Model No. MR15-26S
Three leaf mandrel
Hydraulic mandrel expansion
Air brake (adjustable tensioning)
Fail-safe brake during power off / loss
Jog drive for threading
Coil hold down arm with driven end wheel
MINSTER Powered Coil Straightener Model No. MS-30-26-7
Seven straightening rolls
Individual upper straightening roll adjustments
Individual upper roll adjustments
Pinch rolls with air operated adjustments
Stock peeler table
Adjustable stock width edge guides
Exit cascade loop support rollers
Variable speed drive
Auto / run loop control
Operator's stations
Jog forward and reverse
Minster Cabinet Mounted Servo Feed
Entry Cascade Rolls
Single End Thread Table
Loop Contro
