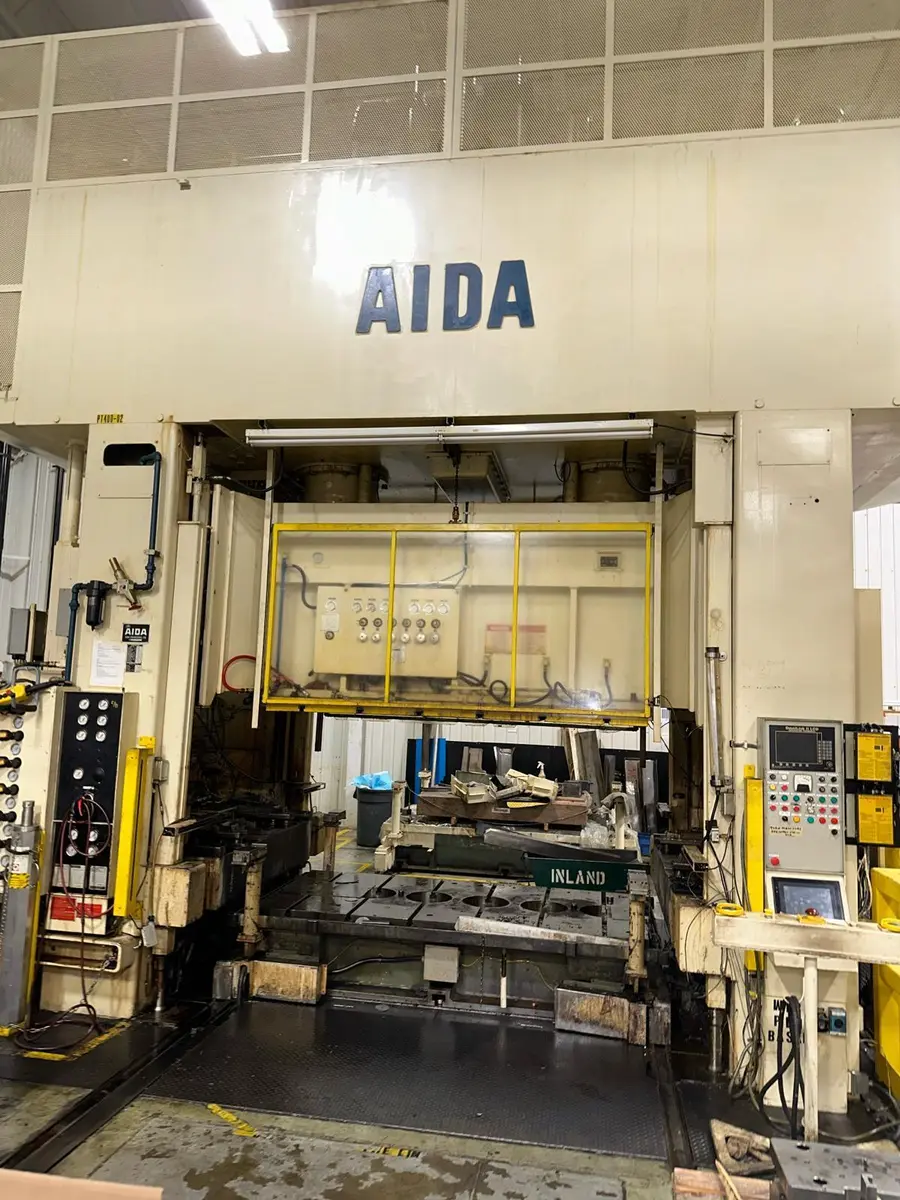

AIDA 400 Ton LINK - Transfer Press - 2 Moving Bolsters - Great Opportunity

AIDA 400 Ton LINK - Transfer Press - 2 Moving Bolsters - Great Opportunity

Have one to sell?
1 226 344 9956
carlos@PressTrader.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Straight Side Presses
Manufacturer:
AIDA
Model:
TMX-L2-400
Condition:
Excellent
Stock #:
HH20240610
Status:
For Sale

Description

Model: TMX-L2-400-250-120
Capacity: 400 Ton (Metric)
Bolster/Slide: 98.4" x 47.2"
Stroke: 18.11"
SPM 15 ~ 30
Die Height: 29.5"
Adjustment: 2.75"
Height: 265"
Weight: 210.000 lbs

Type of PressMechanicalMechanical
Tonnage450 T408.234 t
Bolster (LR)98.4"2,499.4 mm
Bolster (FB)47.2"1,198.9 mm
Stroke18.11"459.99 mm
Shut Height29.5"749.3 mm
Min SPM5 strokes/min.5 strokes/min.
Max SPM30 strokes/min.30 spm
Vari Speed (Yes/No)YesYes
Ram (FB)47.2"1,198.9 mm
Ram (LR)98.4"2,499.4 mm
Slide Adjustment2.75"69.85 mm
Dimensions265" height265" height
Weight210,000 lbs210,000 lbs

Model: TMX-L2-400-250-120
Capacity: 400 Ton (Metric)
Bolster/Slide: 98.4" x 47.2"
Stroke: 18.11"
SPM 15 ~ 30
Die Height: 29.5"
Adjustment: 2.75"
Height: 265"
Weight: 210.000 lbs
