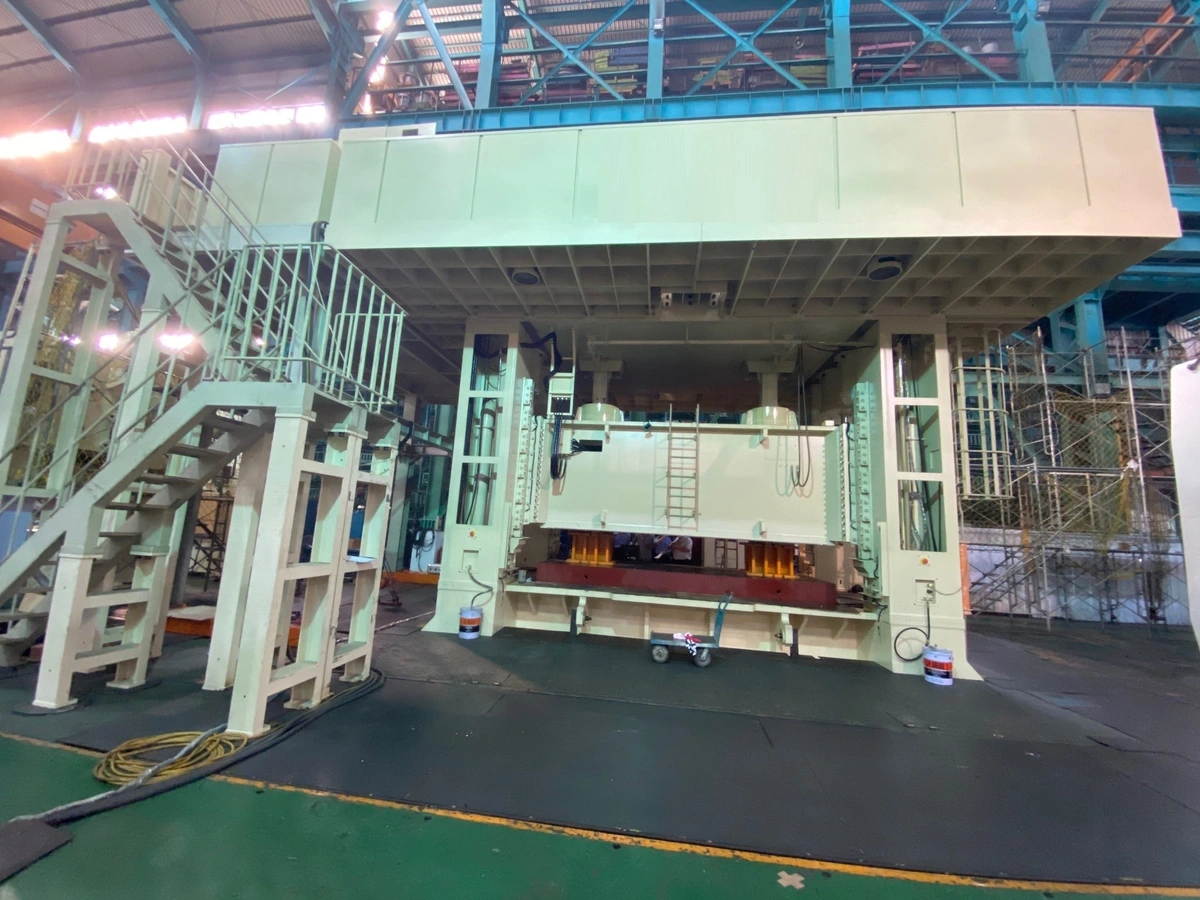

1000 Ton SERVO Press - NEW in Stock
Have one to sell?
ConditionNew
1 available
New
Model: SDS2-1000
Servo Press
Capacity: 1000 Ton (Metric Tons)
Rating Point 13 mm / 0.51"
Stroke: 450 mm / 17.7"
SPM: 5~26
Die Height: 700 mm / 27.6"
Adjustment: 250 mm / 9.8"
Slide and Bolster: 4500 x 1800 mm / 177" x 70"
Upper die weight: 15,000 kg
Window: 1250 x 650 mm / 49" x 25"
Servo and Slide motor: DELTA
380 V
JIS 1 Accuracy and Standard
Hydraulc Overload
Isolators/Vibra-shock
Centralized Lube System
Model: SDS2-1000
Servo Press
Capacity: 1000 Ton
Rating Point 13 mm
Stroke: 450 mm
SPM: 5~26
Die Height: 700 mm
Adjustment: 250 mm
Slide and Bolster: 4500 x 1800 mm
Upper die weight: 15,000 kg
Window: 1250 x 650 mm
Servo and Slide motor: DELTA
380 V
JIS 1 Accuracy and Standard
Hydraulc Overload
Isolators/Vibra-shock
Centralized Lube System
Model: SDS2-1000
Servo Press
Capacity: 1000 Ton (Metric Tons)
Rating Point 13 mm / 0.51"
Stroke: 450 mm / 17.7"
SPM: 5~26
Die Height: 700 mm / 27.6"
Adjustment: 250 mm / 9.8"
Slide and Bolster: 4500 x 1800 mm / 177" x 70"
Upper die weight: 15,000 kg
Window: 1250 x 650 mm / 49" x 25"
Servo and Slide motor: DELTA
380 V
JIS 1 Accuracy and Standard
Hydraulc Overload
Isolators/Vibra-shock
Centralized Lube System
Imperial
| Type of Press | Servo |
| Tonnage | 1,000 T |
| Bolster (LR) | 177.17" |
| Bolster (FB) | 70.866" |
| Stroke | 17.717" |
| Shut Height | 27.559" |
| Min SPM | 5 strokes/min. |
| Max SPM | 26 spm |
| Vari Speed (Yes/No) | Yes |
| Ram (FB) | 70.866" |
| Ram (LR) | 177.17" |
| Slide Adjustment | 9.8425" |
Model: SDS2-1000
Servo Press
Capacity: 1000 Ton
Rating Point 13 mm
Stroke: 450 mm
SPM: 5~26
Die Height: 700 mm
Adjustment: 250 mm
Slide and Bolster: 4500 x 1800 mm
Upper die weight: 15,000 kg
Window: 1250 x 650 mm
Servo and Slide motor: DELTA
380 V
JIS 1 Accuracy and Standard
Hydraulc Overload
Isolators/Vibra-shock
Centralized Lube System
