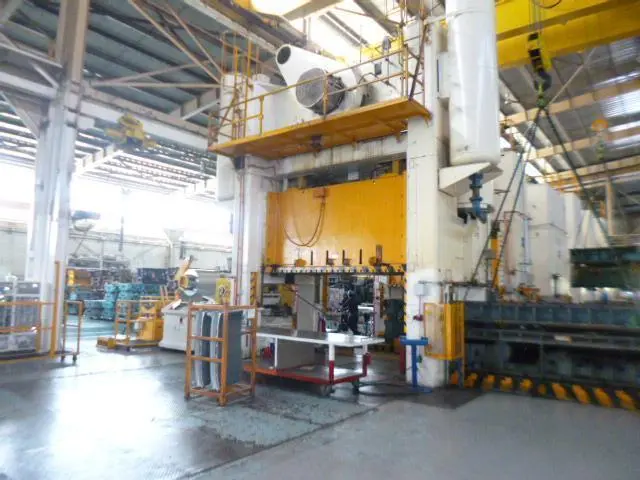

800 Ton Verson 4000 x 2000 (Moving Bolster) - in SLP Mexico
Have one to sell?
ConditionUsed
1 available
Model: S4-800-4000-2000T
Year: 1980
Capacity: 800 Tons
Speed: 14 SPM
Shut Height: 1500mm
Adjustment: 500mm
Stroke: 600mm
Cushion Capacity: 96 Tons, 250mm Stroke
Moving Bolster (1)
Model: S4-800-4000-2000T
Year: 1980
Capacity: 800 Tons
Speed: 14 SPM
Shut Height: 1500mm
Adjustment: 500mm
Stroke: 600mm
Cushion Capacity: 96 Tons, 250mm Stroke
Moving Bolster (1)
Model: S4-800-4000-2000T
Year: 1980
Capacity: 800 Tons
Speed: 14 SPM
Shut Height: 1500mm
Adjustment: 500mm
Stroke: 600mm
Cushion Capacity: 96 Tons, 250mm Stroke
Moving Bolster (1)
Imperial
| Type of Press | Mechanical |
| Tonnage | 800 T |
| Bolster (LR) | 157.48" |
| Bolster (FB) | 78.74" |
| Stroke | 23.622" |
| Shut Height | 59.055" |
| Min SPM | 14 strokes/min. |
| Max SPM | 14 spm |
| Vari Speed (Yes/No) | No |
| Ram (FB) | 78.74" |
| Ram (LR) | 157.48" |
| Slide Adjustment | 19.685" |
Model: S4-800-4000-2000T
Year: 1980
Capacity: 800 Tons
Speed: 14 SPM
Shut Height: 1500mm
Adjustment: 500mm
Stroke: 600mm
Cushion Capacity: 96 Tons, 250mm Stroke
Moving Bolster (1)
