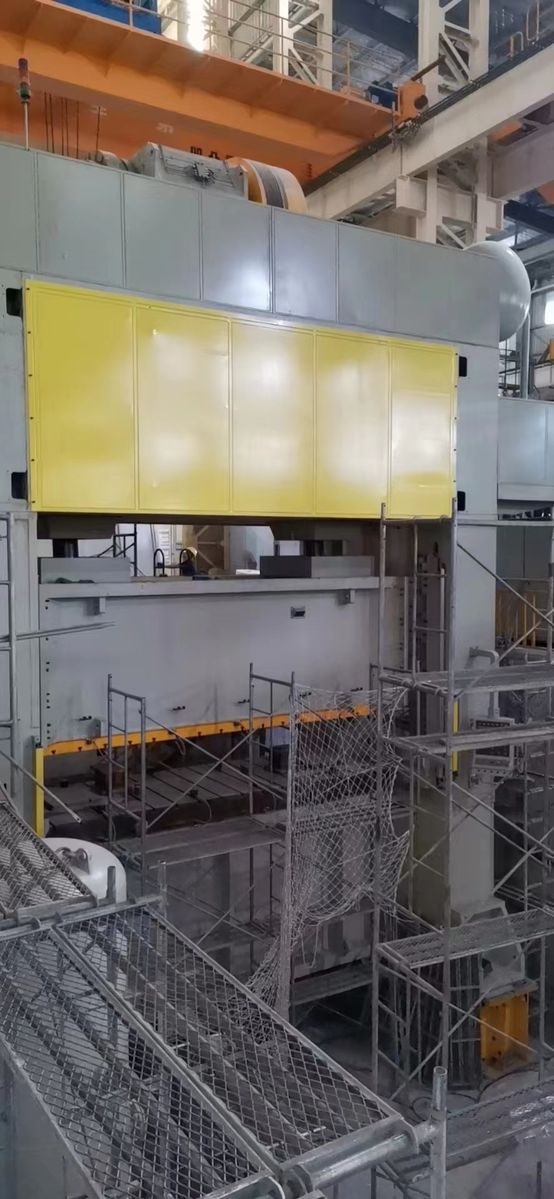

1250 Ton Straight Side Press 5000 x 1600 mm / 196" x 63"
Straight Side Presses
Tonnage - 1250 ton
Rated point - 13
Frame - H TYPE, TIE ROD
Mode: continous, manual, inch
Cltuch Type: DRY
Drive system: CRANK
Stroke: 400 mm
S.P.M 15-25
Shut height: 650 mm
Slide adjustment: 250 mm
Bolster area: 5000*1600 mm
Slide area: 5000*1500 mm
Side opening: 1500*900 mm
Lubrication: Thin Oil
Max upper die weight: 10000 kg
Power 380v /50 HZ
Two-stage gear reduction, oil pressure type tonnage display device, temperature control detection, operation height 800, the ground above the height of about 9500, the total height of about 1200
Stainless steel rack, 8-12mm, progressive die
UL Cerificate - N/A
Delivery: 7 DAY
| Type of Press | Mechanical |
| Tonnage | 1,250 T |
| Bolster (LR) | 5,000 mm |
| Bolster (FB) | 1,600 mm |
| Stroke | 400 mm |
| Shut Height | 650 mm |
| Min SPM | 15 strokes/min. |
| Max SPM | 25 spm |
| Vari Speed (Yes/No) | Yes |
| Ram (FB) | 1,500 mm |
| Ram (LR) | 5,000 mm |
| Crank (Single/Double) | Double |
| Air Clutch (Yes/No) | Yes |
| Slide Adjustment | 250 mm |
Tonnage - 1250 ton
Rated point - 13
Frame - H TYPE, TIE ROD
Mode: continous, manual, inch
Cltuch Type: DRY
Drive system: CRANK
Stroke: 400 mm
S.P.M 15-25
Shut height: 400 mm
Slide adjustment: 250 mm
Bolster area: 5000*1600 mm
Slide area: 5000*1500 mm
Side opening: 1500*900 mm
Lubrication: Thin Oil
Max upper die weight: 10000 kg
Power 380v /50 HZ
Two-stage gear reduction, oil pressure type tonnage display device, temperature control detection, operation height 800, the ground above the height of about 9500, the total height of about 1200
Stainless steel rack, 8-12mm, progressive die
UL Cerificate - N/A
Delivery: 7 DAY
