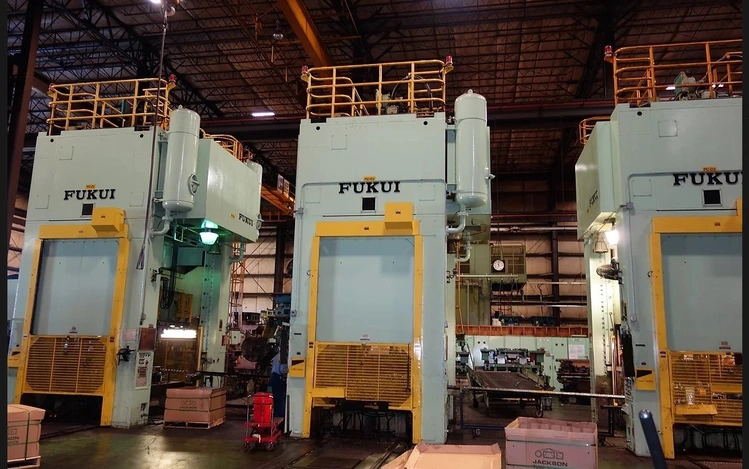

FUKUI Press Line 500Ton + 400Ton + 400Ton
Straight Side Presses
| Type of Press | Mechanical |
| Tonnage | 500 T |
| Bolster (LR) | 2,500 mm |
| Bolster (FB) | 1,500 mm |
| Stroke | 600 mm |
| Shut Height | 1,000 mm |
| Min SPM | 15 strokes/min. |
| Max SPM | 25 spm |
| Vari Speed (Yes/No) | Yes |
| Ram (FB) | 1,500 mm |
| Ram (LR) | 2,500 mm |
| Crank (Single/Double) | Double |
| Slide Adjustment | 450 mm |
MDE500 + MDE400 + MDE400
Capacity: 500 ton (lead press) + (2) 400 ton
Stroke: 600 mm / 26.62"
Die Height: 1000 mm / 39.37"
Slide Adj. 450 mm / 17.71:
SPM 15-25
Bolster Area: 2500 x 1500 mm / 98.42" x 59"
Slide Area: 2500 x 1500 mm / 98.42" x 59"
Cushion: 70 ton
Stroke: 1 - 250 mm / 0.04-9.85"
| Type of Press | Mechanical |
| Tonnage | 500 T |
| Bolster (LR) | 2,500 mm |
| Bolster (FB) | 1,500 mm |
| Stroke | 600 mm |
| Shut Height | 1,000 mm |
| Min SPM | 15 strokes/min. |
| Max SPM | 25 spm |
| Vari Speed (Yes/No) | Yes |
| Ram (FB) | 1,500 mm |
| Ram (LR) | 2,500 mm |
| Crank (Single/Double) | Double |
| Slide Adjustment | 450 mm |
MDE500 + MDE400 + MDE400
Capacity: 500 ton (lead press) + (2) 400 ton
Stroke: 600 mm / 26.62"
Die Height: 1000 mm / 39.37"
Slide Adj. 450 mm / 17.71:
SPM 15-25
Bolster Area: 2500 x 1500 mm / 98.42" x 59"
Slide Area: 2500 x 1500 mm / 98.42" x 59"
Cushion: 70 ton
Stroke: 1 - 250 mm / 0.04-9.85"
