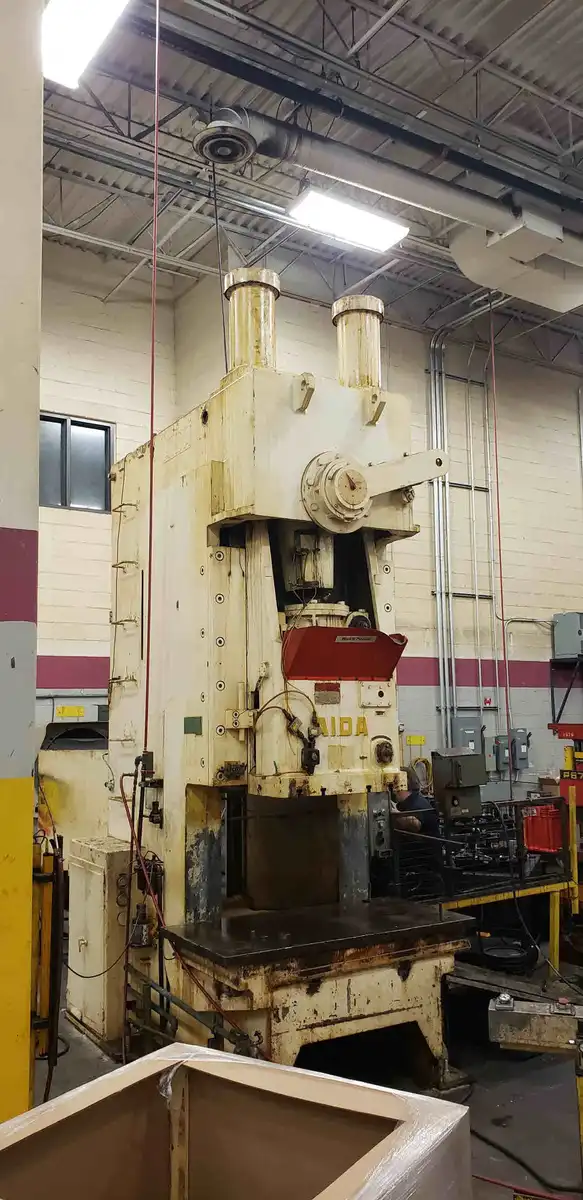

Aida PC-20 C-Frame Punch Press
Gap Frame (OBS) Presses
| Type of Press | Mechanical |
| Tonnage | 220 T |
| Bolster (LR) | 57" |
| Bolster (FB) | 31.4" |
| Stroke | 9.8" |
| Shut Height | 30" |
| Max SPM | 33 strokes/min. |
| Bed W | 57" |
| Bed L | 31.4" |
| Slide Adjustment | 4.1" |
| Dimensions | 75”L x 101”W x 185”H |
| Weight | 50,000 LBS |
Model PC-20 (2)
Tonnage………………………………………………………220 Ton
Bed Size………………………………………………………57” x 31.4”
Ram Size……………………………………………………..33.4” x 24.8”
Stroke………………………………………………………….9.8”
Adjustment…………………………………………………...4.1”
Shut Height…………………………………………………..30”
Shut Height (Stroke Down & Adjustment Up)………….17.7”
Back Opening (Width)……………………………………...32.5”
Stroke Per Minute…………………………………………..33 SPM
Main Motor…………………………………………………...20 HP
Electrics………………………………………………………575V/3PH/60HZ
Made In……………………………………………………….Japan
Approximate Weight………………………………………..50,000 LBS
Approximate Overall Dimension…………………………75”L x 101”W x 185”H
Equipped With:
Air Clutch Mechanical Type Press, Back Geared, Push Buttons, Floor Standing,
