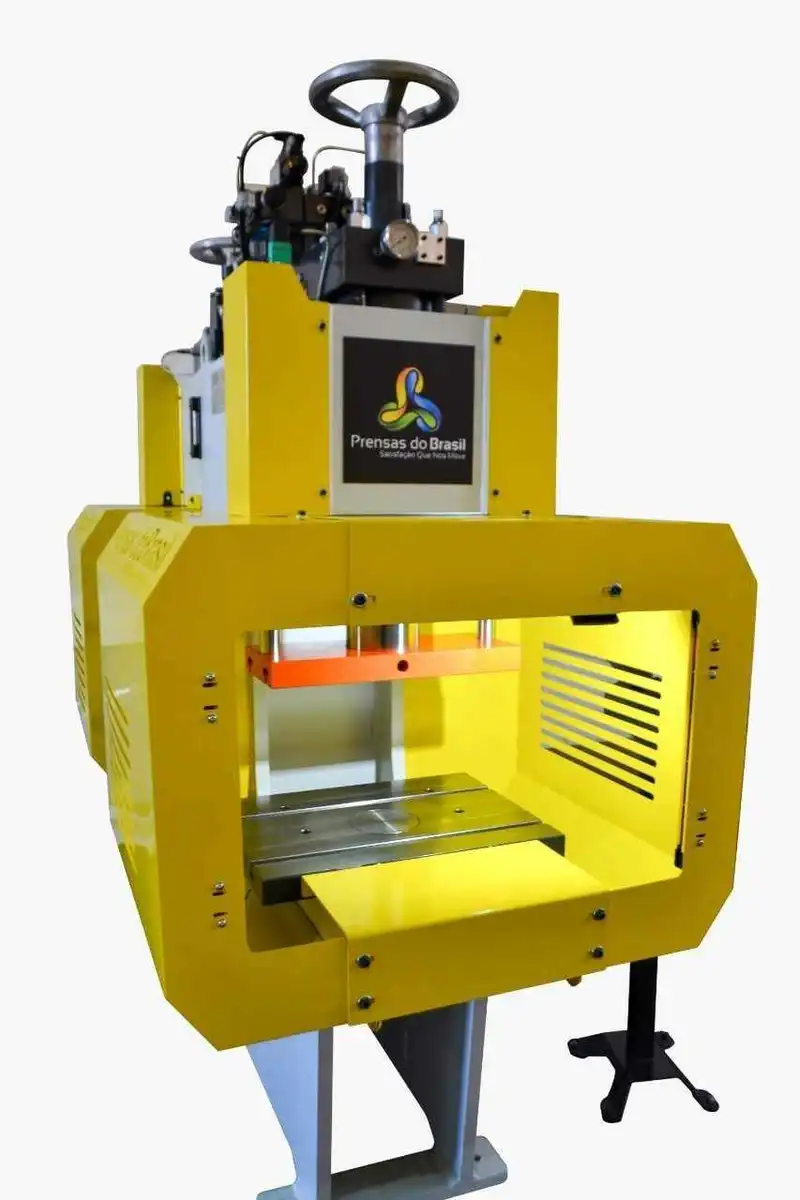

Double Slide Hydraulic GAP Frame Press
Hydraulic Presses
.jpeg)
.jpeg)
.jpeg)
.jpeg)
| Tonnage | 40 T |
| Stroke | 250 mm |
| Daylight | 400 mm |
| Power | 10 hp |
| Bed W | 600 mm |
| Bed L | 500 mm |
| Weight | 2400 kgs |
Capacity: 40 Ton
Bolster: 600 x 500 mm
Scrap Exit Ø: 150 mm
Slide: 500 x 200 mm
Daylight: 400 mm
Stroke: 250 mm
Aproximation speed: 190 mm/s
Pressing speed: 18mm/s
Return speed: 130 mm/s
DOUBLE - SLIDED PRESS
