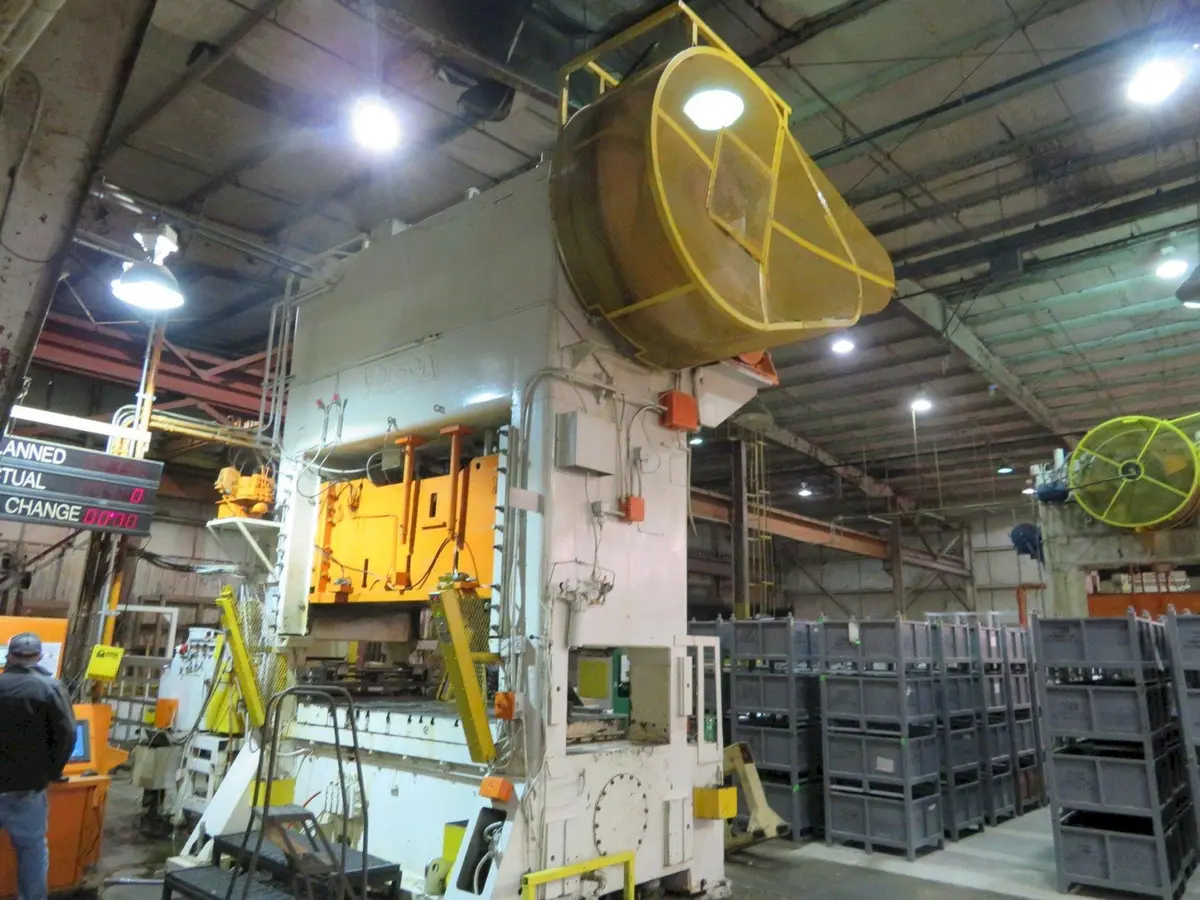

300 TON VERSON STRAIGHT SIDE DOUBLE CRANK PRESS

300 TON VERSON STRAIGHT SIDE DOUBLE CRANK PRESS

Have one to sell?
1 226 344 9956
carlos@PressTrader.com
$99,000.00 USD
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Straight Side Presses
Manufacturer:
VERSON
Model:
S2-300-96-49T
Condition:
Excellent
Stock #:
MPA20220429
Status:
For Sale

Description

MODEL NUMBER: S2-300-96-49T
SERIAL NUMBER: 19716
CAPACITY: 300 TON
LENGTH OF STROKE: 10"
STROKES PER MINUTE: 40-80
SHUT HEIGHT: 34"
SLIDE ADJUSTMENT: 6"
BOLSTER SIZE: 96" LR x 49.5" FB

Type of PressMechanicalMechanical
Tonnage300 T272.156 t
Bolster (LR)96"2,438.4 mm
Bolster (FB)49"1,244.6 mm
Stroke10"254 mm
Shut Height34"863.6 mm
Min SPM40 strokes/min.40 strokes/min.
Max SPM80 strokes/min.80 spm
Vari Speed (Yes/No)YesYes
Ram (FB)49"1,244.6 mm
Ram (LR)96"2,438.4 mm
Crank (Single/Double)DoubleDouble
Slide Adjustment6"152.4 mm

MODEL NUMBER: S2-300-96-49T
SERIAL NUMBER: 19716
CAPACITY: 300 TON
LENGTH OF STROKE: 10"
STROKES PER MINUTE: 40-80
SHUT HEIGHT: 34"
SLIDE ADJUSTMENT: 6"
BOLSTER SIZE: 96" LR x 49.5" FB
