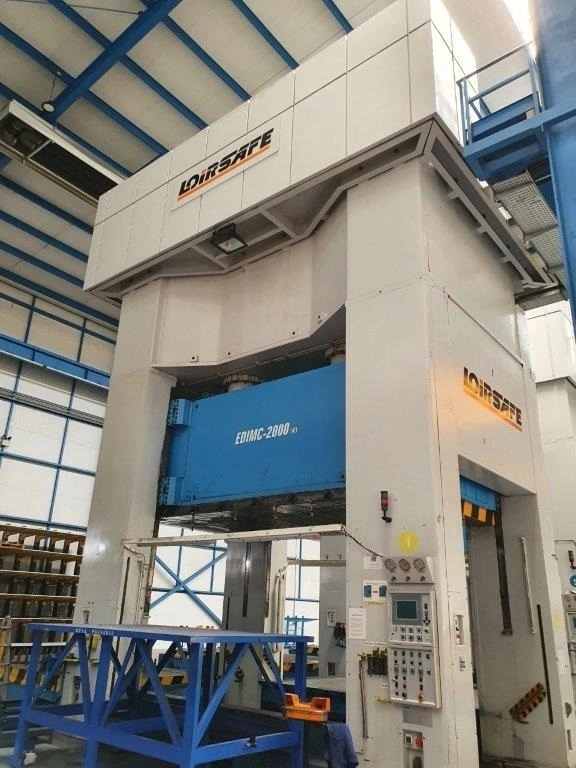

LOIRE SAFE MODEL EDIMC 2000-600-250/50-25/27-17
Hydraulic Presses
CAPACITY: 2000 – 20,000 KN (200-2,000 TN)
BOLSTER AREA: 5000 x 2500 MM
RAM AREA: 5000 x 2500 MM
RAM STROKE: 1700 MM
LATERAL WINDOWS SIZE: 2900 MM
DAYLIGHT - MIN-MAX: 1000 – 2700 MM
HEIGHT OVER FLOOR: 9650 MM
APPROX TOTAL WEIGHT: 364,000 KGS
APPROX. PIT DEPTH: 5300 MM
| Tonnage | 2,000 T |
| Stroke | 1,700 mm |
| Daylight | 2,700 mm |
| Bed W | 5,000 mm |
| Bed L | 2,500 mm |
| IPM | 53 mpm |
| Bolster (LR) | 5,000" |
| Bolster (FB) | 2,500" |
| Slide Adjustment | 1,700 mm |
| Weight | 365000 |
LOIRE SAFE MODEL EDIMC 2000-600-250/50-25/27-17
YEAR OF MANUFACTURE: 2003
CAPACITY: 2000 – 20,000 KN (200-2,000 TN)
BOLSTER AREA: 5000 x 2500 MM
RAM AREA: 5000 x 2500 MM
RAM STROKE: 1700 MM
LATERAL WINDOWS SIZE: 2900 MM
DAYLIGHT - MIN-MAX: 1000 – 2700 MM
HEIGHT OVER FLOOR: 9650 MM
APPROX TOTAL WEIGHT: 364,000 KGS
APPROX. PIT DEPTH: 5300 MM
