Equipment
Available Presses
Die Tryout & Spotting Presses
700 ton - Die Spotting Press - ECO Servo Hydraulic

700 ton - Die Spotting Press - ECO Servo Hydraulic

Have one to sell?
1 226 344 9956
carlos@PressTrader.com
ConditionNew
Have one to sell?

Overview

Type:
Die Tryout & Spotting Presses
Manufacturer:
LCH
Model:
LDSMA-700-3000-2000
Condition:
Build To Order
Year:
2018
Status:
For Sale

Description

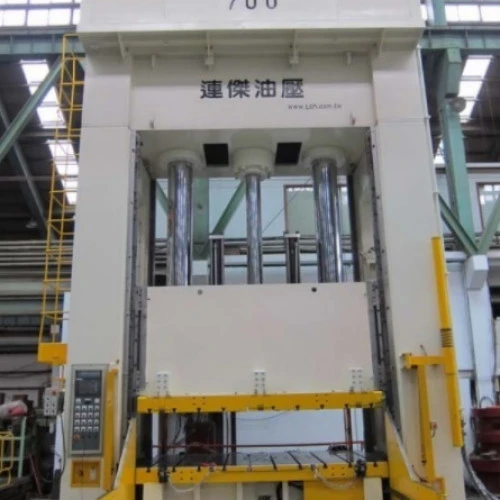

LCH Die Spotting Press 700 Ton ECO Servo Hydraulic Model LDSMA-700-3000-2000

Type of PressHydraulicHydraulic
Tonnage700 T635.03 t
Bolster (LR)118.11"3,000 mm
Bolster (FB)78.74"2,000 mm
Stroke106.3"2,700 mm
Shut Height106.3"2,700 mm
Slide Adjustment106.3"2,700 mm

METRIC: Millimeters
SELECT TYPE OF PRESS: Hydraulic
Die Tryout Press, Spotting Press
Tonnage: 700
Bolster (LR): 3000
Bolster (FB): 2000
Ram (LR): 3000
Ram (FB): 2000
Stroke: 2700
Slide Adjustment: 2700
Max. Die Height: 2700
MOVING BOLSTER(S): 1
