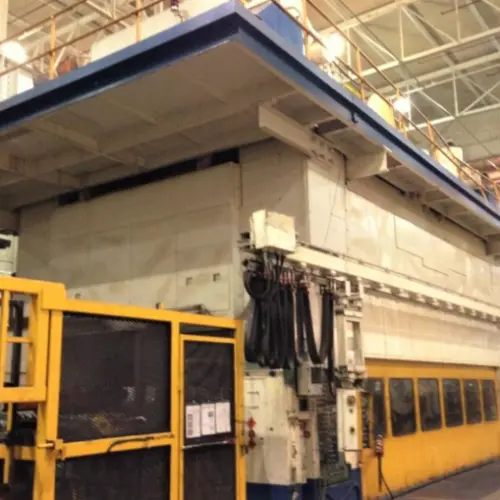

3000 Ton Verson Press

Have one to sell?
1 226 344 9956
carlos@PressTrader.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Straight Side Presses
Manufacturer:
VERSON
Model:
TL-SE4-3000-288-108T
Status:
For Sale
Type of PressMechanicalMechanical
Tonnage3,000 T2,721.557 t
Bolster (LR)288"7,315.2 mm
Bolster (FB)108"2,743.2 mm
Stroke40"1,016 mm
Min SPM10 strokes/min.10 strokes/min.
Max SPM20 spm
Ram (FB)108"2,743.2 mm
Ram (LR)288"7,315.2 mm
Slide Adjustment8"203.2 mm

METRIC: Inches
SELECT TYPE OF PRESS: Mechanical
Straight Side, Progressive, Transfer
POINTS: 4
Tonnage: 3000
Bolster (LR): 288
Bolster (FB): 108
Ram (LR): 288
Ram (FB): 108
Stroke: 40
Slide Adjustment: 8
Min. SPM: 10
Max. SPM: 20

Overview

Type:
Straight Side Presses
Manufacturer:
VERSON
Model:
TL-SE4-3000-288-108T
Status:
For Sale

Long Description

Manufacturer: Verson
Model: TL-SE4-3000-288-108T
Tonnage: 3,000 ton
Bed Size: 288” x 108”
Capacity of press at ½” up: 3,000 tons at 10 SPM
Stroke: 40”
Adj of Slide: 8”
SPM: 10” – 20”
Micro-inch thru main motor: 5 SPM
Total Press Weight: 2,251,250 lbs
Cushion Specifications:
Type of Cushion: Verson
Cushion Location: First Die Station
Cushion Capacity at 80 PSIG: 150 tons
Cushion Working Stroke: 0” to 8”
Cushion Adj: 13”
Press Electrical Service Requirements:
Line Voltage: 460 V
Phase & Cycle: 3 - 60 HZ
Total Line Amps: 2,100 A
Press Air Service Requirements:
Supply Pipe Size: 1½” pipe
Working Air Pressure: 80 PSIG
Clutch Air Consumption per Engagement: .874 cu ft, ft of free air at 60 PSIG

Specifications

Imperial

Type of PressMechanical
Tonnage3,000 T
Bolster (LR)288"
Bolster (FB)108"
Stroke40"
Min SPM10 strokes/min.
Max SPM20 spm
Ram (FB)108"
Ram (LR)288"
Slide Adjustment8"

METRIC: Inches
SELECT TYPE OF PRESS: Mechanical
Straight Side, Progressive, Transfer
POINTS: 4
Tonnage: 3000
Bolster (LR): 288
Bolster (FB): 108
Ram (LR): 288
Ram (FB): 108
Stroke: 40
Slide Adjustment: 8
Min. SPM: 10
Max. SPM: 20
