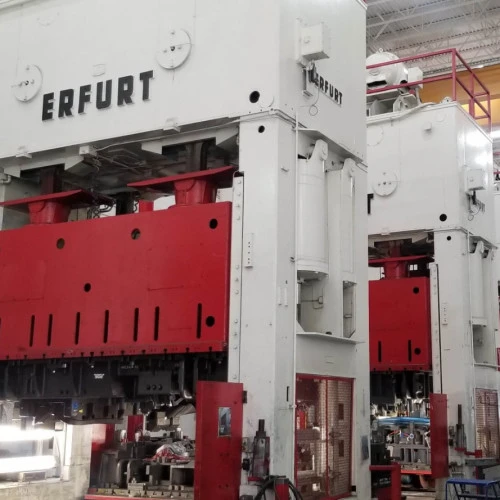

800 TON ERFURT Press
Straight Side Presses
| Type of Press | Mechanical |
| Tonnage | 800 T |
| Bolster (LR) | 4,000 mm |
| Bolster (FB) | 2,500 mm |
| Stroke | 500 mm |
| Shut Height | 1,200 mm |
| Min SPM | 14 strokes/min. |
| Max SPM | 0 spm |
| Ram (FB) | 2,500 mm |
| Ram (LR) | 4,000 mm |
| Slide Adjustment | 500 mm |
METRIC: Millimeters
SELECT TYPE OF PRESS: Mechanical
Straight Side
POINTS: 2
Tonnage: 800
Bolster (LR): 4000
Bolster (FB): 2500
Ram (LR): 4000
Ram (FB): 2500
Stroke: 500
Slide Adjustment: 500
Max. Die Height: 1200
Min. SPM: 14
Main Motor (KW): 90
Additional Information: Moving Bolster. Electrical and Mechanical upgraded within the last 5-7 years
MOVING BOLSTER(S): 1
| Type of Press | Mechanical |
| Tonnage | 800 T |
| Bolster (LR) | 4,000 mm |
| Bolster (FB) | 2,500 mm |
| Stroke | 500 mm |
| Shut Height | 1,200 mm |
| Min SPM | 14 strokes/min. |
| Max SPM | 0 spm |
| Ram (FB) | 2,500 mm |
| Ram (LR) | 4,000 mm |
| Slide Adjustment | 500 mm |
METRIC: Millimeters
SELECT TYPE OF PRESS: Mechanical
Straight Side
POINTS: 2
Tonnage: 800
Bolster (LR): 4000
Bolster (FB): 2500
Ram (LR): 4000
Ram (FB): 2500
Stroke: 500
Slide Adjustment: 500
Max. Die Height: 1200
Min. SPM: 14
Main Motor (KW): 90
Additional Information: Moving Bolster. Electrical and Mechanical upgraded within the last 5-7 years
MOVING BOLSTER(S): 1
