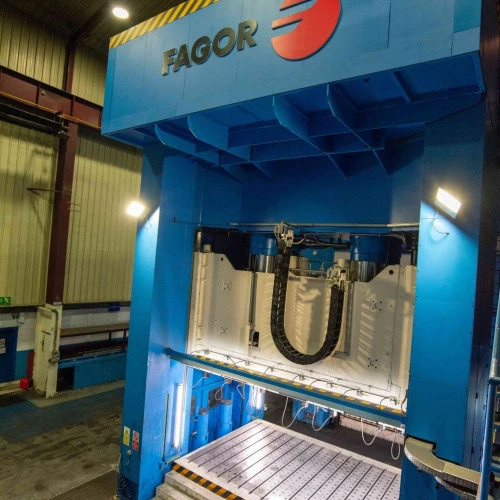

FAGOR - H4-2500-5000-3000 (2018) - TryOut Press
Die Tryout & Spotting PressesType of Press | Mechanical |
Tonnage | 2,500 t |
Bolster (LR) | 5,000 mm |
Bolster (FB) | 3,000 mm |
Stroke | 1,800 mm |
PRESS DESIGN
frame design H-frame
openings in uprights yes
moving bolster yes
PRESS FORCES
total force (nominal) 2500 to
PRESS TABLE
clamping surface (left-right) 5000 mm
clamping surface (front-back) 3000 mm
Table height over floor 820 mm
RAM
clamping surface (left-right) 5000 mm
clamping surface (front-back) 3000 mm
stroke 1800 mm
RAM (HYDR. PRESS)
number of main-cylinders 4
approximation velocity max. 490 mm/s
working velocity max. 17 mm/s
return velocity max. 250 mm/s
CUSHION IN RAM
force of cushion 350 to
stroke 200 mm
clamping surface (left-right) 4300 mm
clamping surface (front-back) 2500 mm
working principle hydraulical
regulated yes
DIE CUSHION (TABLE CUSHION)
force of cushion 600 to
stroke 400 mm
clamping surface (left-right) 4320 mm
clamping surface (front-back) 2700 mm
working principle hydraulical
regulated yes
TOOL ASSEMBLY DIMENSIONS
distance between columns (H-frame) 5050 mm
TOOL ASSEMBLY DIMENSIONS
distance table - ram max. 2700 mm
ELECTRICAL SPECIFICATIONS
total power consumption 565 kW
mains voltage 400 V
mains frequency 50 Hz
DIMENSIONS / WEIGHTS
height above floor level 10350 mm
total weight approx. 370000 kg
ATTACHMENTS FOR PRESSES
light barrier yes
hydraulic overload protection yes
